LaserCAM 2D Design

Simple designs can be created quickly and accurately and output to a laser with minimum effort.

Create designs quickly and accurately

Custom colour palettes

Multiple file formats

2D Design Software for Laser Cutters.

Download Software

Buy Licence

LASERCAM 2D DESIGN

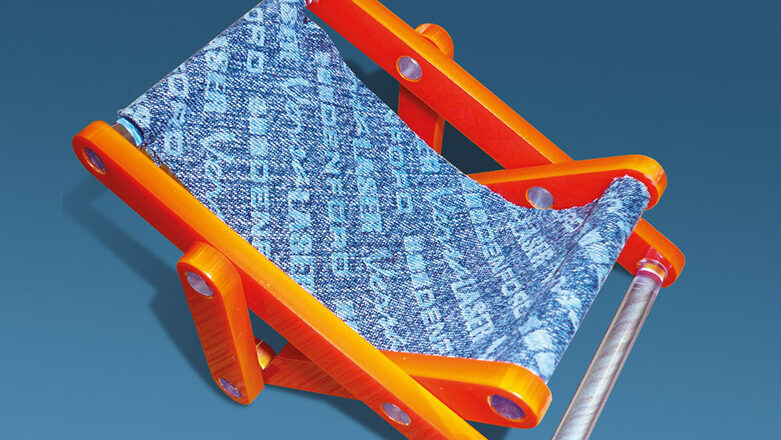

The ideal way to manufacture logos, designs and projects.

LaserCAM 2D Design has all the features you need for laser cutting / engraving – all in one place. For example, the image importer includes image editing features to adjust brightness, contrast and gamma. The interactive preview and tools to create greyscale, black and white or halftone images will ensure you get the best results every time.

Custom colour palettes make it easy to pick the right colours for the laser driver.
Easy grid size set up = just click 'Match to Printer.
Handy preview window.

Technical Details

CAD Drawing Features

The following objects can be created to exact sizes:

Lines, Arcs, Polylines, Curves, Polygons, Ellipses, Text, Multi-line Text with justification, Hatched areas, Offset paths, Bitmap Image Contours.

Any TrueType font available to Windows™ can be installed and used by LaserCAM

Drawing features allow easy creation and manipulation of objects:

Customisable grid size for snapping to fixed distances.
Editable object nudge
Angular (polar) snap
Absolute and relative co-ordinate entry
Object property editor allows sizes, angles and positions to be entered exactly
Quick drawing navigation (pan & zoom) is realised by mouse wheel operation
Object grips can be grabbed and moved
Various object snap modes can be activated at any time: End point; Mid point, Nearest; Intersection, Tangent
Perpendicular Object modifiers allow objects to be altered quickly and accurately: Move, Scale, Rotate, Mirror, Copy, Paste, Join, Explode, Group and Ungroup,
Customisable colour palettes for easy configuration to match the Laser driver, Rectangular array, Circular array,
Boolean shape operators: Union; Intersect; Split; Subtract.

Import / Export Features

Import:

Raster Image - JPG,BMP,ICO,EMF,WMF.
Clipboard Vector paste (eg from CorelDraw)
Gerber (RS274X) - PCB designs are imported and converted into polylines.
AutoCAD: DWG and DXF.
Vector Image Clipart - WMF, EMF.
Font - any Truetype Font (TTF) can be imported then used by the software.
Encapsulated PostScript: .EPS vector files.

Export:

AutoCAD: .DXF files can be saved.
QuickCAM 2D Design: .MCM files saved in LaserCAM can also be opened in QuickCAM 2D for CNC machining

Recommended System Requirements

1 GHz Processor
1 GB Memory
32 GB Hard Disk
Microsoft Windows 7, 8, 10 & 11
OpenGL Graphics Card, or built-in Graphics, to support a minimum 1024 x 768 Screen Resolution
