Micromill Pro: CNC Milling Machine
Compact, classroom-ready CNC milling for education and training
Price on application
This product is built to order and the quote can be customised to your specification.
Compact design
Fully enclosed and safe to use
Compact, safe and classroom-ready CNC milling

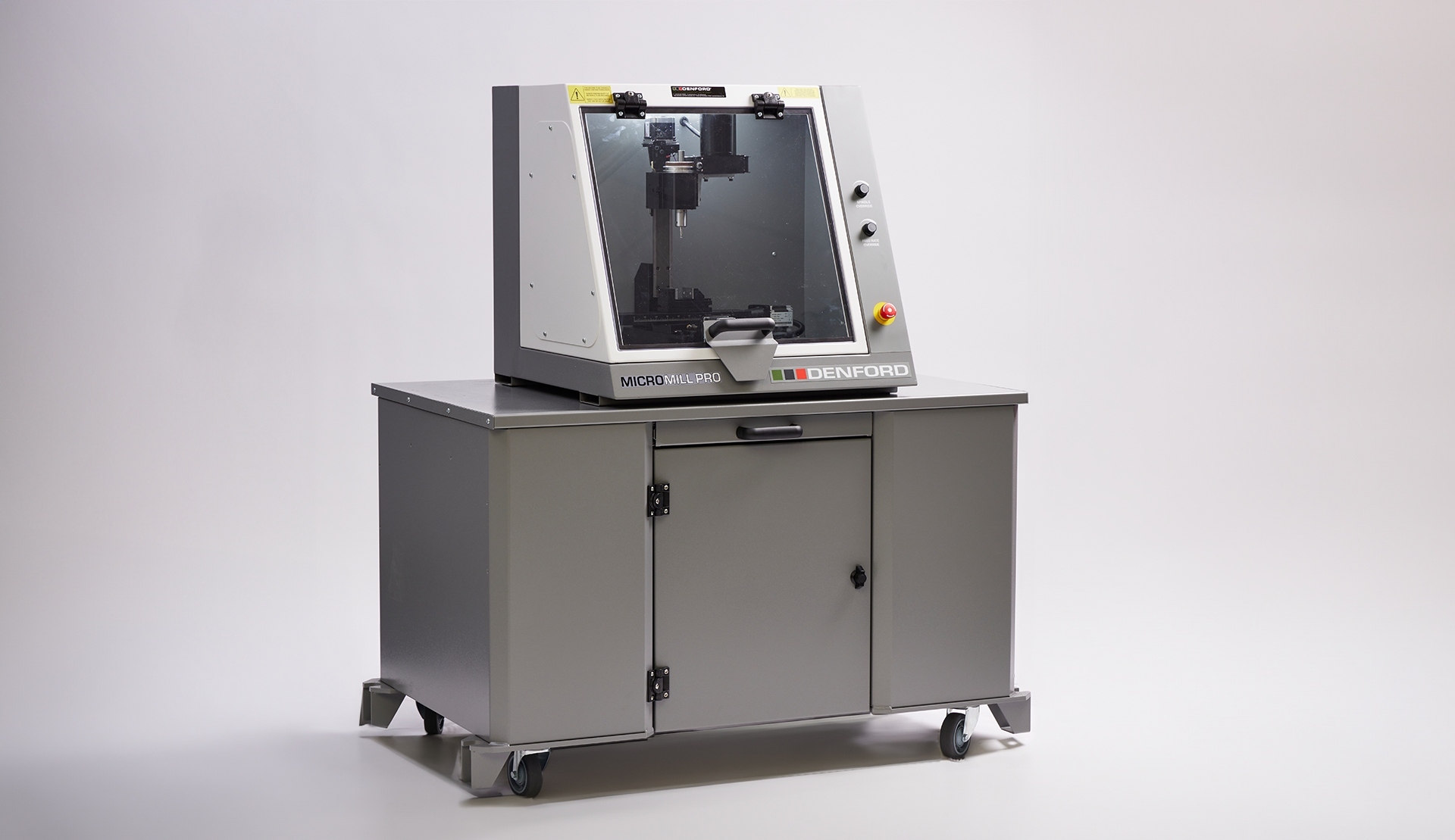

The Denford Micromill Pro is a compact 3-axis CNC milling machine designed for education and training, providing an accessible introduction to CNC machining, programming and CAD/CAM.
Fully enclosed and compact enough for the classroom or engineering workshop, the Micromill Pro enables students to turn digital designs into physical components while developing practical CNC manufacturing skills.
Variable spindle speeds and feed rates make it ideal for student projects, prototypes and small components in materials including wax, plastics, acrylic and free-cutting alloys.
FEATURES
An ideal introduction to CNC Milling
The Micromill Pro provides students with practical experience of the complete CNC manufacturing process – from creating a design and generating toolpaths through to CNC programming, machine setup and machining the finished component.
Its 3-axis CNC configuration introduces students to X, Y and Z-axis movement and the fundamental principles used in CNC machining and modern manufacturing.
Combined with Denford's CNC control and CAD/CAM software, the Micromill Pro provides an accessible route into practical CNC manufacturing for students at different stages of their engineering education.
FEATURES
Why choose the Micromill Pro
The Micromill Pro combines compact dimensions with the features required to introduce CNC milling in an education or training environment.
Key benefits include:
- Compact 3-axis CNC milling machine
- Designed for education and training
- Ideal introduction to CNC manufacturing
- Fully enclosed interlocking guard
- Small classroom-friendly footprint
- Maximum spindle speed of 2,500 rpm
- Adjustable spindle speeds and feed rates
- Suitable for student projects and prototypes
- Machine wax, plastics, acrylic and free-cutting alloys
- CNC operating software included
- CAD/CAM software included
- Essential tooling supplied as standard
- Ethernet or USB connectivity
FEATURES
For student projects and prototyping
The Micromill Pro is particularly suited to producing small components, prototypes and student designs.
Variable spindle speeds and feed rates provide the flexibility to machine a range of materials while allowing students to develop an understanding of tooling, workholding, speeds, feeds and CNC machining processes.
Suitable materials include:
- Wax
- Plastics
- Acrylic
- Free-cutting alloys
This makes the Micromill Pro suitable for everything from introductory CNC exercises through to more advanced design, engineering and manufacturing projects.
Technical information
Equipment as standard
- VR CNC Milling Operating Software (PC not included).
- QuickCAM 2D Design Software (1 seat).
- Workholding Clamps.
- 3 x 6mm Dia Toolholders.
- 2mm, 4mm & 6 mm Dia Slot Drills.
- Set of Imperial / Metric Allen Keys.
- Maintenance Tools.
- Installation and Instruction Manuals.
- Ethernet or USB Connection.
Optional extras
- When combined with the Microturn Pro lathe, a Machine Bench, complete with 2 Computer Support Extensions. NB. Bench Size with Computer Support Extensions: 2500mm x 750mm x 790mm (WxDxH).
- Milling Vice
Mechanical details
| Machine Length | 685mm (26.97in) |
| Machine Depth | 654mm (25.75in) |
| Machine Height | 688mm (27.09in) |
| Machine Weight | 76kg (167.55lbs) |
| Table Size | 70x330mm (2.76x12.99in) |
| Travel X Axis | 228mm (8.98in) |
| Travel Y Axis | 130mm (5.12in) |
| Travel Z Axis | 160mm (6.30in) |
| Table to Spindle | 182mm (7.17in) |
| Max Spindle Speed | 2500rpm |
| Max. Feed Rate | 600mm/min (23.62in/min) |
| Max. 3D Profiling | 600mm/min (23.62in/min) |
| Power Requirements | Single Phase |
| Spindle Motor | 75W (0.1HP) |
| Axes Motor | Stepper |
| Volts | 230VAC |
| Amps | 8 Amps |
| Hz | 50/60 Hz |
| Electrical Connection | 13A Socket |
Downloads
Product Spec Sheet
Micromill Pro
Download
203 KB | pdf
CNC Milling Software
The Micromill Pro is supplied with software to support CNC machine operation and CAD/CAM learning.
VR CNC Milling
VR CNC Milling provides the interface for controlling the Micromill Pro and enables students to develop practical CNC programming and machine operation skills.
QuickCAM 2D Design
QuickCAM 2D Design is an easy-to-use, wizard-based 2D CAD/CAM package.
It enables students to create designs and generate machining data, providing an accessible introduction to the relationship between CAD, CAM and CNC manufacturing.
V-Carve functionality is included as standard.
QuickCAM Pro
For more advanced projects, QuickCAM Pro provides an optional route into 3D machining.
The CAM package can be used to create cutter paths for machining 3D components on a CNC milling machine or router
QuickCAM 2D Design
QuickCAM 2D Design Software is an advanced, yet simple to use, wizard based 2D CAD/CAM package, which now includes V-Carve Extension as standard.
QuickCAM PRO
QuickCAM Pro is an advanced, yet simple to use, wizard based CAM package, which is used to create cutter paths for machining 3D parts on a milling machine or router.
