PCB Engraving

PCB Engraver

3 Axis CNC PCB Engraving Machine

Price on application

This product is built to order and can be customised to your specification.

Value Icons 1

Suitable for all levels of PCB manufacture

Value Icons 1

Ideal for cutting a range of resistant materials

Value Icons 1

Perfect for uneven surfaces

Chemical free PCB manufacture.

PCB Engraver White 001 Resized
FEATURES

Suitable for all levels of learning

A 3 axis CNC PCB and Engraving Machine with totally-enclosed guarding, suitable for all levels of education and training. The PCB Engraver is supplied with operating software incorporating Gerber and DXF import facilities.

The PCB Engraver is ideal for cutting and engraving a range of resistant materials, including copper board, plastic and acrylic. Denford’s PCB Engraving Machine features the latest ‘Floating Head’ technology.

The floating head allows manufacture of PCB’s, and engraving of uneven surfaces. The PCB Engraver is also ideal for batch manufacture of PCB boards.

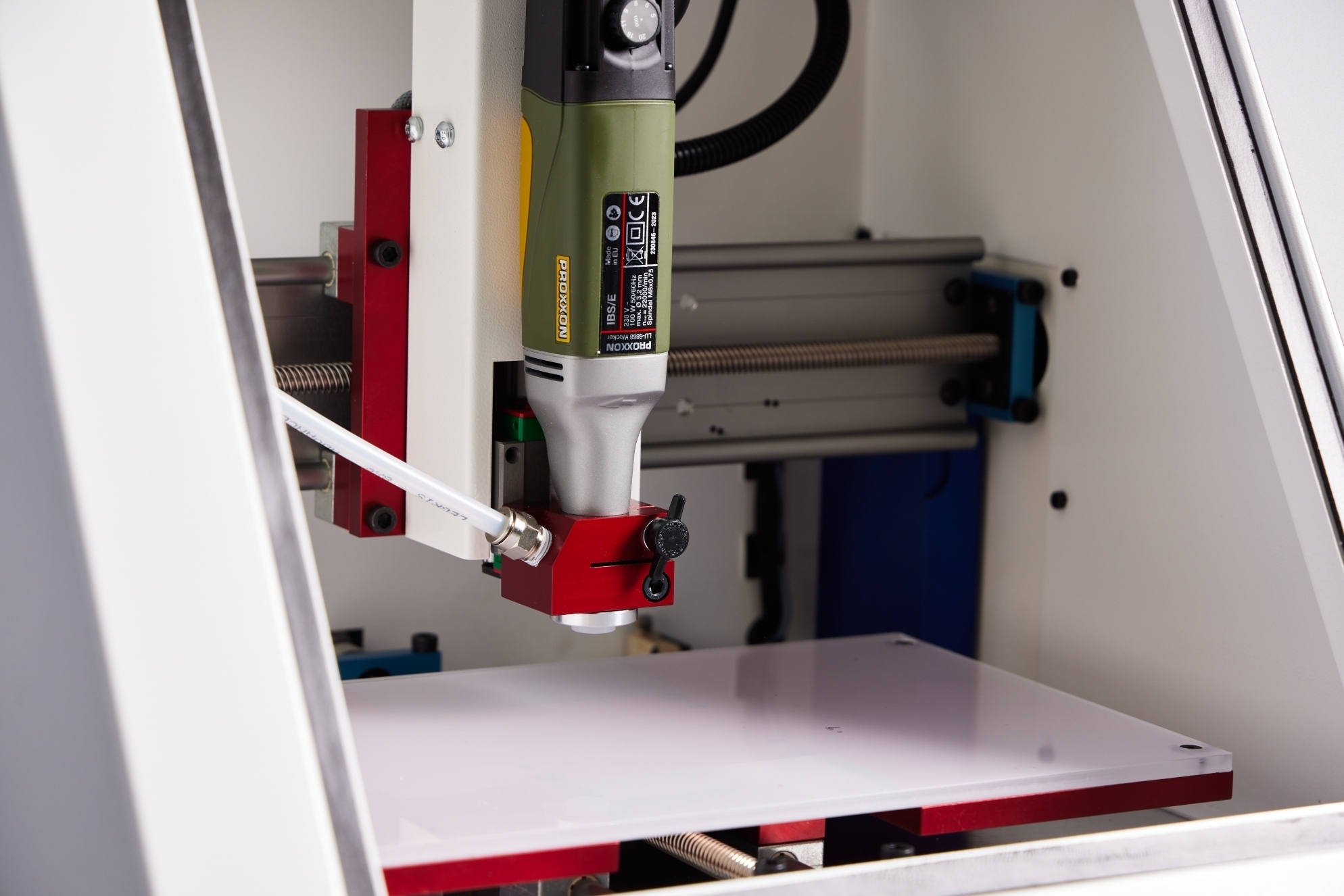

PCB Engraver White 003 Resized
FEATURES

Floating head technology

Denford's PCB Engraver is ideal for schools wishing to move away from traditional methods of chemical etching of PCB boards.

  • Chemical Free PCB manufacture
  • Floating head accommodates for unevenness
  • Works with any software able to support Gerber files
  • Low maintenance

Technical information



Equipment as standard

  • Powerful operating software that is simple to use and allows multiple designs to be made at once.
  • High speed spindle motor and floating head technology.
  • Basic tools and depth-setting device.
  • Outlet for dust extraction.
  • Sacrificial Table.
  • Installation and Instruction Manuals.
  • Ethernet or USB Connection.

Optional extras

  • Spare Spindle motor.
  • DP-50 Extraction unit.
  • Spare Sacrificial Table

Please note

  • The PCB Engraver software will import Gerber files or CNC G-Code files.
  • Third party PCB software is required to create Gerber files, and QuickCAM 2D Design software would be an ideal addition to create CNC G-Code.
  • Dust Extraction is essential to allow the machine to function. The DP-50 is ideal.
  • The machine spindle has a 20 minute 50% duty cycle, so use of additional spindle motors for tool changing will increase productivity.

Mechanical details

Machine Length 570mm (22.44in)
Machine Depth 585mm (23.03in)
Machine Height 385mm (15.16in)
Machine Weight 43kg (94.80lb)
Table Size 360x210mm (14.17x8.27)
Travel X Axis 330mm (13in)
Travel Y Axis 210mm (8.27in)
Travel Z Axis 40mm (1.57in)
Float Z Axis 5mm (1.97in)
Beam Clearance 50mm (1.97in)
Max. Spindle Speed 20,000rpm
Spindle Speed Control Manual
Max. Feed Rate 5000mm/min (196.85in/min)
Max. Contouring Feed Rate 1000mm/min (39.37/min)
Spindle Motor 100V / 230V Supply 100W (0.13HP)
Axes Motors Stepper
Power Requirements Single Phase 230V (5A) / 110V (10A)
Frequency 50/60 Hz
