QuickTURN 2D Design

Technical Details

Profile Drawing Features

• Create lines, arcs and threads on external and internal profiles.
• Geometry is limited to the billet size and interacts with the rest of the profile to inhibit the creation of profiles that would be impossible to machine (e.g, overhangs or breaking through from the internal profile).
• DXF file import wizard allows designs from other CAD software to be turned into a profile ready for the CAM wizard.
• Profile items can be edited interactively on screen, or by the property editor.
• Profile dimensions update constantly.

Tooling and Material Options

• The tooling editor allows a wide range of tool types to be edited or created and features a live 3D preview of the tool.
• The shape and size of tool tips and holders can be defined exactly as they are in the real world for a more realistic simulation.
• Tools can be quickly deactivated so the CAM wizard will not pick them.
• Material types can be configured quickly and easily to include feed, speed and cut depth settings for each of the tools available.
• Default feed and speed settings for all tool types can be edited quickly by a unique override slide bar.
• Tooling and material details can be printed out in summary or full detail.

CAM Wizard Features

• Material selector to alter feed, speed and cut depths.
• Billet material size editor in case the actual material is larger than the design.
• Tooling selector quickly allows certain tools to be deactivated.
• Toolpath generator automatically picks the tools and creates all internal/external cutting and threading operations.
• Tool nose radius compensation is automatically applied to the generated toolpath for any turning, boring and grooving tools.
• A 3D preview of the design also shows the generated toolpaths.
• Each set of toolpaths can be deactivated if not required by the rearrange profile editor.
• Toolpaths are post-processed to a CNC file suitable for a Denford Lathe.

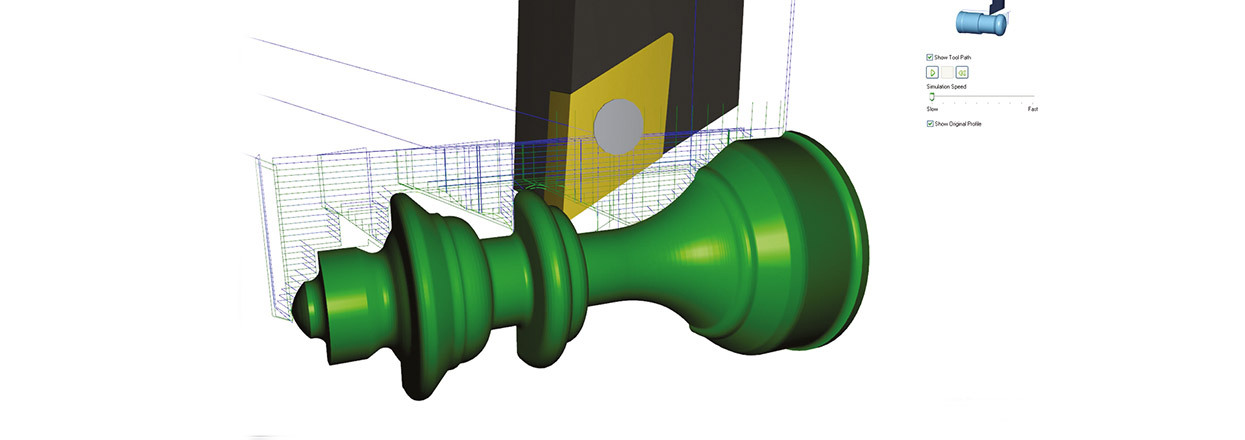

• A fully animated 3D cutting simulation of the tool paths lets you verify that the CNC program is ok.

Recommended System Requirements

• 1 GHz Processor
• 1 GB Memory
• 32 GB Hard Disk
• Microsoft Windows 7, 8 ,10 & 11
• OpenGL Graphics Card, or built in Graphics, to support a minimum 1024 x 768 Screen Resolution
