Laser Cutting / Engraving
VLS Large Format Series Lasers
Laser cutter & engraver
Price on application
This product is built to order and can be customised to your specification.
Free standing with large working area.
Precision cutting, deep engraving and scribing
Convert a wide range of materials with digital precision.
FEATURES
Precision cutting and engraving.
Large Format VLS Series Lasers are free standing laser units with a large working area.
There are several models and power options available to accommodate a wide range of budgets and applications including cutting, deep engraving, precision scribing, decorative etching on wood plastic, fabric, leather, paper, rubber and also the marking of glass, ceramic, metal and stone.
FEATURES
Options available for all
There are two bed sizes to choose from and a variety of power options available to accommodate a range of budgets and applications.

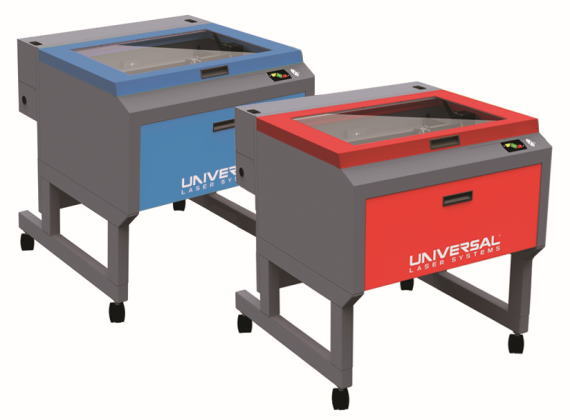

- 2 colour options: red or blue.
- Unique 'materials cutting' menu
- Suitable for use with a range of materials
- All systems are RoHS compliant.
Technical information
Standard equipment
- VLS Lens kit 2.0"
- Laser cartridge
- Air Assist Cone
- Honeycomb Bed
- LaserCAM Software
Optional extras
- Extraction Unit with integrated Air Assist Compressor

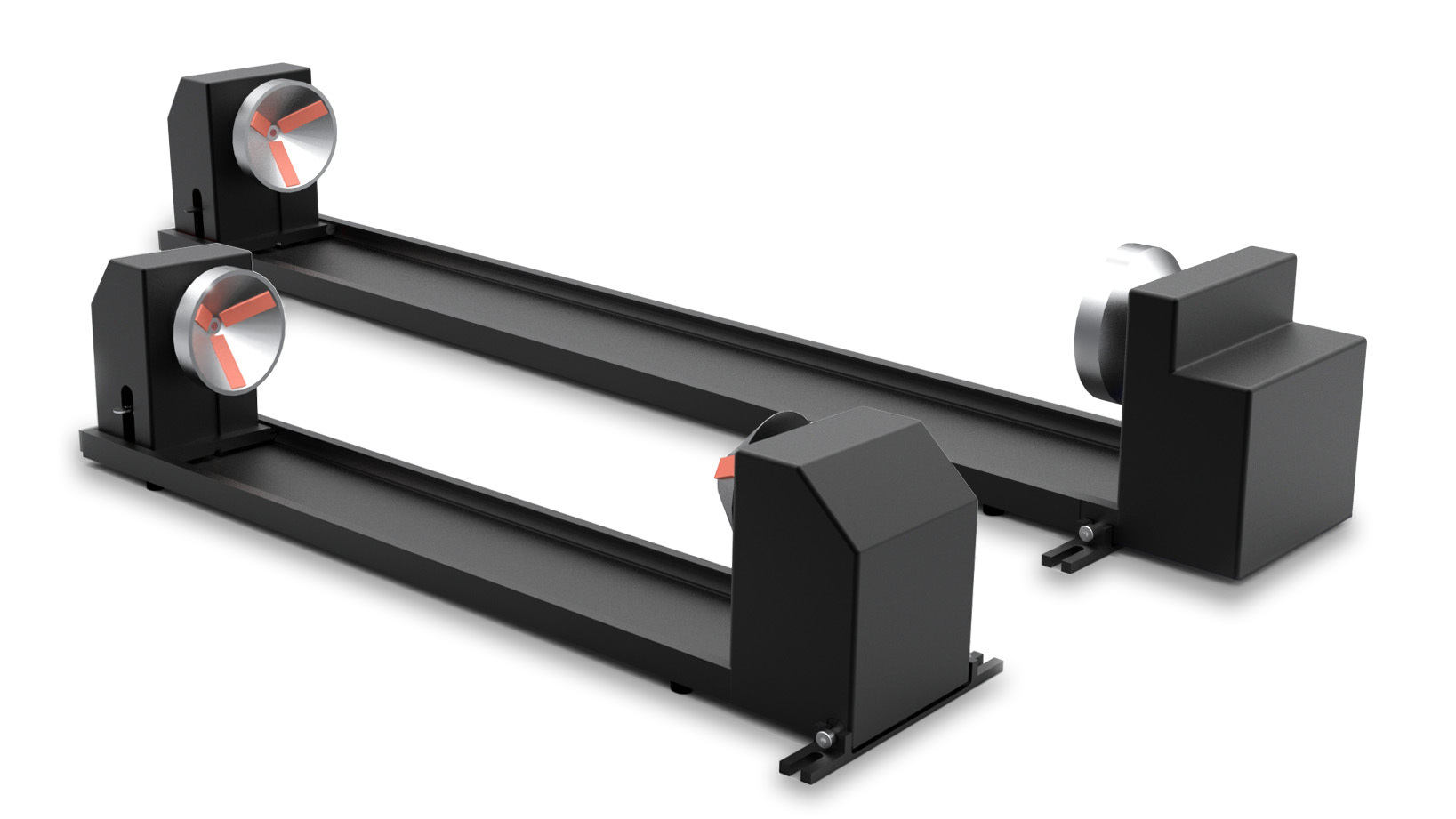

- Rotary Fixture
- Air Assist Back Sweep (for use when cutting rubber)
*The recommended Extraction Unit for the Large Format VLS Series Lasers is the Denford AD-ORACLE Extraction Unit, which has integrated Air Assist, Pre Filter and HEPA Chemical Gas Filter, which can be visually monitored by a Filter Status Display.
Safety Information
Class 1 safety enclosure for CO2 laser beam. Class 111a for red laser pointer.
Mechanical details (VLS4.75 / VLS6.75 / AD-ORACLE Extraction Unit)
| Machine Length | 914mm / 1118mm / 430mm |
| Machine Depth | 914mm / 914mm / 430mm |
| Machine Height | 965mm / 991mm / 980mm |
| Machine Weight | 122kg / 147kg / 90kg |
| Approx. Working Area | 457 x 610mm / 457 x 813mm |
| Laser Power Options | 30, 40, 50, 60 or 75 Watts |
| Volts | 230 Volts / 230 Volts / 100-240 Volts |
| Amps | 10 Amps / 10 Amps / 12.5 Amps |
| Exhaust Connection Dia. | 101.6mm / 2 x 101.6mm / 75mm |
| Electrical Connection | 13A Socket / 13A Socket / 13A Socket |
Downloads
Product Spec Sheet
VLS Large Format Lasers
Download
792 KB | pdf
