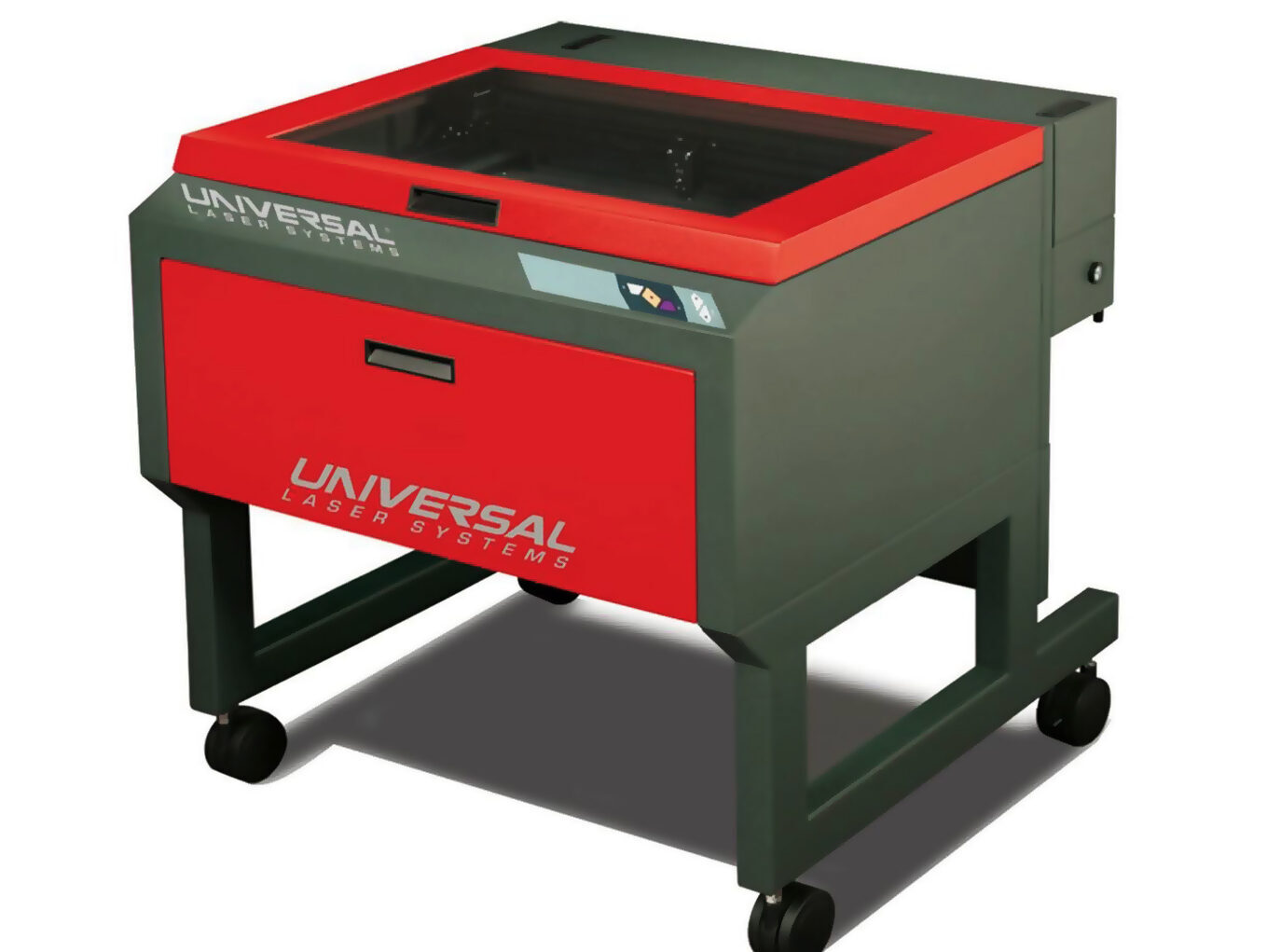

VLS Series Lasers

Laser cutter & engraver

Price on application

This product is built to order and can be customised to your specification.

Enquire Now

Totally enclosed, safe to use. RoHS Compliant.

Ideal for cutting a range of resistant materials

Precision cutting, deep engraving and scribing

Transform images or drawings on screen to real items made from a variety of materials.

FEATURES

Precision cutting and engraving.

The VLS2.30DT and VLS3.60DT Lasers are compact and easy to use and can transform images or drawings on your computer screen into real items made from a wide variety of materials.

These Lasers are ideal for cutting, deep engraving, precision scribing, decorative etching on wood, plastic, fabric, leather, paper, rubber and will also mark glass, ceramic, metal and stone.

FEATURES

Options available for all

There are two bed sizes to choose from and a variety of power options available to accommodate a range of budgets and applications.

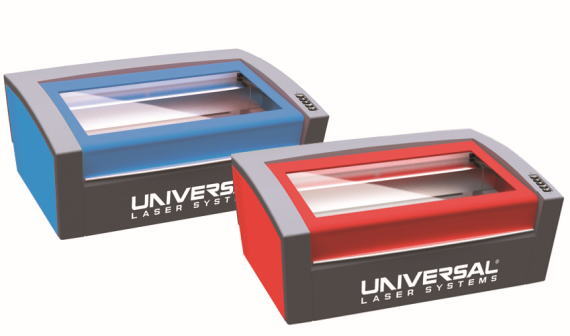

2 colour options: red & blue.
Unique 'materials cutting' menu
Suitable for use with a range of materials
All systems are RoHS compliant.
Portable, and will fit through a standard width doorway

Technical information

Standard equipment

VLS Lens Kit 2.0
Laster Cartridge
Air Assist Cone
Honeycomb Bed
LaserCAM Software

Optional extras

Extraction Unit with integrated Air Assist Compressor
Rotary Fixture
Air Assist Back Sweep (for use when cutting rubber)

Safety Information

Class 1 safety enclosure for CO2 laser beam. Class 111a for red laser pointer.

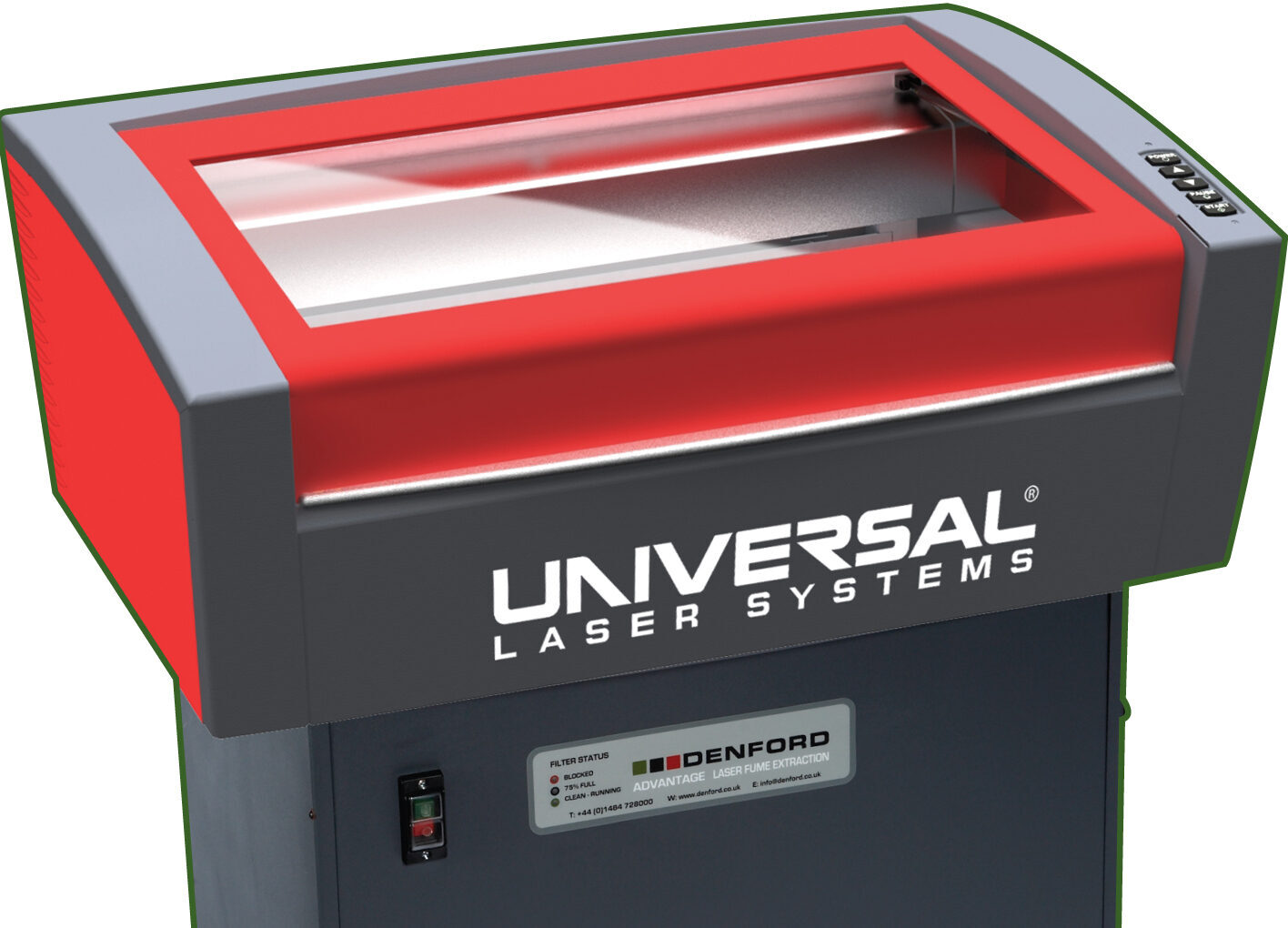

Mechanical details (VLS2.30DT / VLS3.60DT / Advantage Unit)

Machine Length	661mm / 864mm / 670mm
Machine Depth	635mm / 635mm / 470mm
Machine Height	356mm / 356mm / 770mm
Machine Height on Advantage Unit	1118mm / 1118mm / n/a
Machine Weight	32kg / 43kg / 65kg
Approx. Working Area	305mm x 406mm / 305mm x 610mm / n/a
Laser Power Options	30 Watts / 30, 40, 50 or 60 Watts / n/a
Volts	230 Volts/ 230 Volts / 230 Volts
Amps	10 Amps / 13 Amps / 7.25 Amps
Electrical Connection	13A Socket / 13A Socket / 13A Socket
