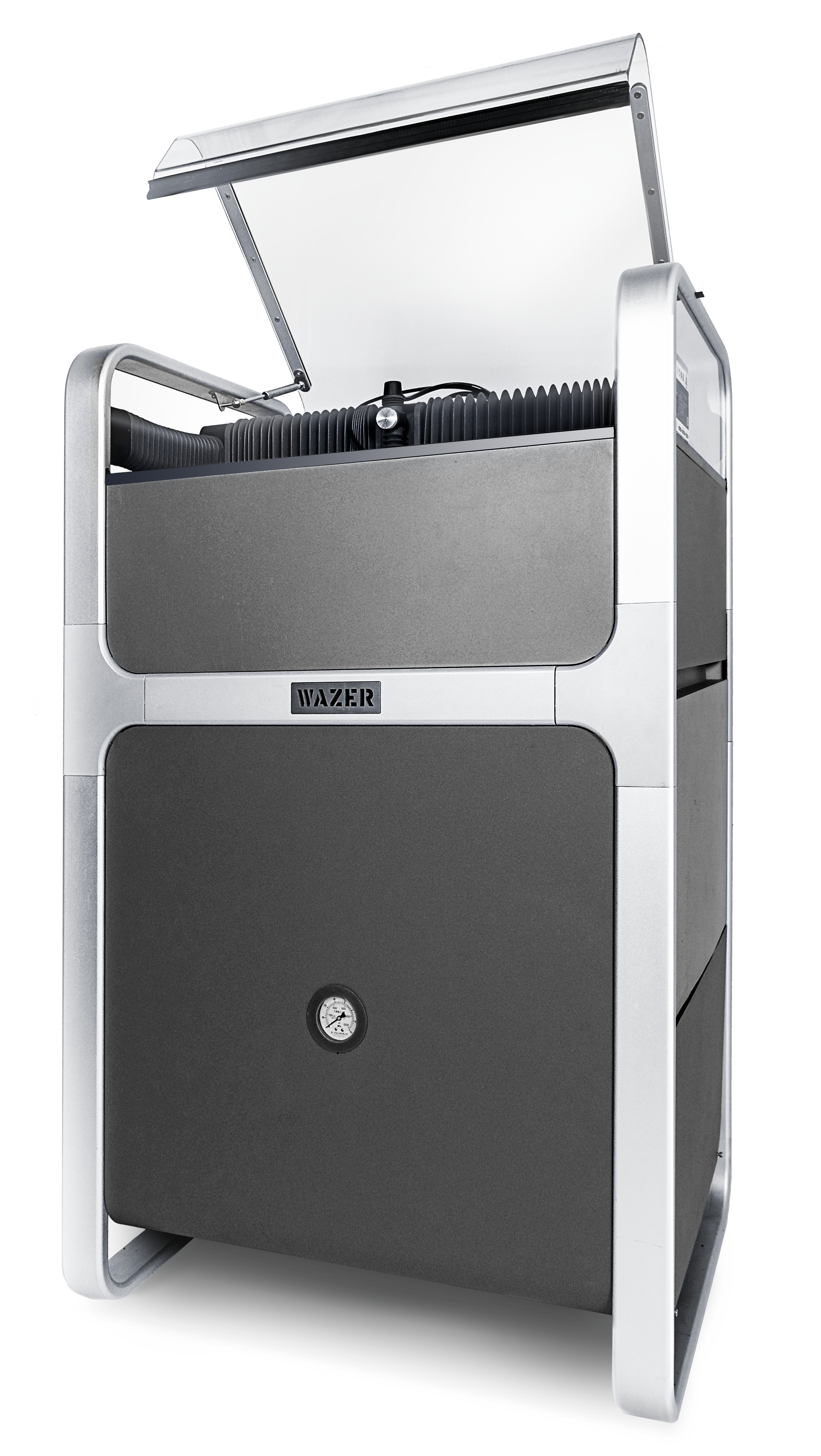

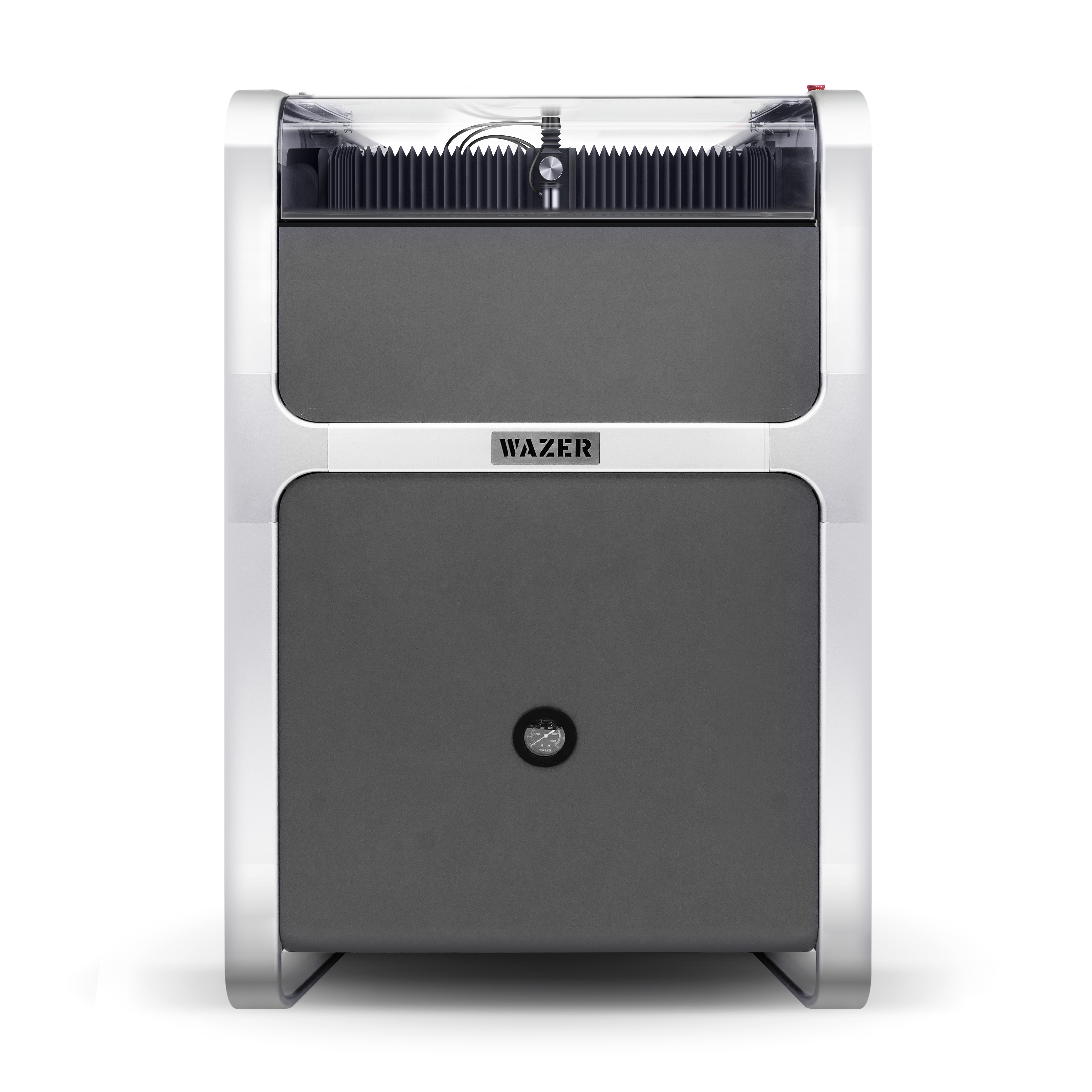

Wazer Pro Waterjet

High performance desktop waterjet cutter

Price on application

This product is built to order and the quote can be customised to your specification.

Enquire Now

High cutting power and productivity

Clean, safe and easy to operate

Cuts any material, quickly

Industrial calibre waterjet cutting.

FEATURES

High speed and productivity.

The Wazer Pro is a high-performance waterjet that brings high cutting power and productivity, in a small footprint, to any school, college, university or workshop.

Clean, quiet, and safe to operate, the Wazer Pro offers industrial calibre waterjet cutting in-house, so you can cut thick materials quickly and efficiently.

FEATURES

Makes light work of tough materials

Waterjet technology has significant advantages over conventional cutting methods:

Cuts any material – such as steel, titanium, aluminium, glass, stone, tiles, carbon fibre.
Achieves intricate detail.
Requires no ventilation.
Results in a smooth surface finish.
No heat-induced material warping.
Can be operated by anyone.

Technical information

Equipment as standard

Wazer Pro with Integrated Pump.
1 x Wazer Replacement Cut Bed
2 x 25kg Abrasive Buckets.
12 Month Warranty.
WAM Software.

Optional Extras

Wazer Replacement Cut Beds - 3 Pack
Wazer Pro Replacement Nozzle
25Kg Bag 80 Mesh Fine Garnet

Important

Must be plumbed into water supply

Mechanical details

Main Unit Size	856mm x 648mm x 1400mm
Main Unit Empty Weight	170kg
Main Unit Loaded Weight	360kg
Main Unit Power	220-240V / 50Hz / 16.1A
Cutting Area	305mm x 460mm
Bed Size	330mm x 485mm
Kerf (Width of cut)	1.1mm
Water Source	Filtered tap water
Input Water Filter	~300 Mesh
Input Water Requirement	> 5.7L / min; > 35Psi (2.4 Bar)
Water Hardness	Maximum 180mg / L
Draining Hose Requirement	5.7L / min; <9m length; <1.2m elevation
Water Recirculation	Not recommended
Abrasive Flow Rate	150g / min
Abrasive Capacity	19.1kg
Abrasive Type	Premium 80 Mesh fine garnet abrasive
Noise Emission	77.6 + / - 3dB
