Wazer Waterjet Cutter
Wazer Waterjet
Desktop waterjet cutter
Price on application
This product is built to order and the quote can be customised to your specification.
Clean, safe and easy to operate
Cuts almost any material - hard or soft
Safe, high quality waterjet cutting, with digital precision.
FEATURES
Compact, safe and easy to operate.

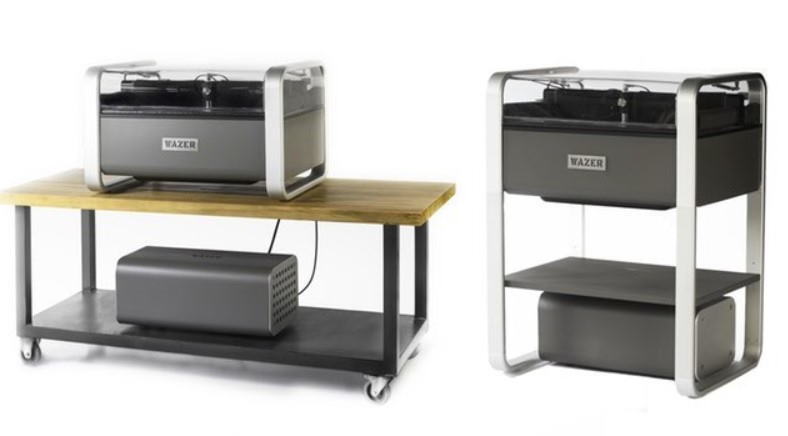

The Wazer is the world’s first Desktop Waterjet Cutter. It will easily fit into any classroom/workshop and is available as either a desktop unit, or integrated into its own stand.
Clean, safe and easy to operate, the Wazer is compact and fully-enclosed.
FEATURES
Makes light work of tough materials
Waterjet technology has significant advantages over conventional cutting methods:
- Cuts almost any material – such as steel, titanium, aluminium, glass, stone, tiles, carbon fibre and more.
- Achieves intricate detail and smooth high-quality finishes
- Requires no ventilation.
- No heat-induced material warping.
- Compact, fully enclosed design for maximum classroom safety.
- Easy to operate, suitable for learners at all levels.
Technical information
Equipment as standard
- Wazer Desktop: Wazer & Pump Box
- Wazer Standup: Wazer & Pump Box & Stand.
- 1 x Wazer Replacement Cut Bed
- 2 x 25kg Abrasive Buckets
- 12 Month Warranty
Optional Extras
- Replacement Cut Beds - 3 Pack
- Replacement Nozzle
- 25Kg Bag 80 Mesh Fine Garnet
Important
- Must be plumbed into water supply
Mechanical details
| Main Unit Size | 856mm x 648mm x 551mm |
| Main Unit Size (With Stand) | 856mm x 648mm x 1220mm |
| Main Unit Empty Weight | 50kg |
| Main Unit Loaded Weight | 180kg |
| Pump Box Size | 533mm x 355mm x 280mm |
| Pump Box Weight | 42kg |
| Main Unit Power | 220-240V / 50Hz / 2.5A |
| Pump Box Power | 220-240V / 50Hz / 10A |
| Cutting Area | 305mm x 460mm |
| Bed Size | 330mm x 485mm |
| Kerf (Width of cut) | 1.2mm |
| Water Source | Filtered tap water |
| Input Water Filter | ~300 mesh |
| Input Water Requirement | > 3.8L / min; > 35Psi (2.4 Bar) |
| Draining Hose Requirement | 1.9L / min; <9m length; <1.2m elevation |
| Water Recirculation | Not recommended |
| Abrasive Flow Rate | 40g - 150g / min |
| Abrasive Capacity | 13.5kg |
| Abrasive Type | Premium 80 Mesh fine garnet abrasive |
| Noise Emission | 74+ / - 3dB |
Downloads
Product Spec Sheet
Wazer Waterjet
Download
338 KB | pdf
