Microturn Pro

Compact 2 Axis entry level CNC lathe.

Price on application

This product is built to order and can be customised to your specification.

Enquire Now

Entry level machine

Compact design

Fully enclosed and safe to use

Designed with education and training at its core.

FEATURES

Compact and safe to use.

A compact 2 axis CNC lathe, with totally enclosed interlocking guard – the ideal introduction to CNC manufacturing.

FEATURES

Perfect for producing small components.

Variable spindle speeds and feed-rates make the Microturn Pro suitable for proving student designs, producing small components in materials such as wax, plastic, acrylic and free cutting alloys.

Technical information

Equipment as standard

VR CNC Turning Operating Software (PC not included).
QuickTURN 2D Design Software.
Tailstock
Right Hand Turning Tool
Parting / Grooving Tool
Set of Imperial / Metric Allen Keys.
Maintenance Tools.
Installation and Instruction Manuals.
Ethernet or USB Connection

Optional extras

Thread Cutting Package

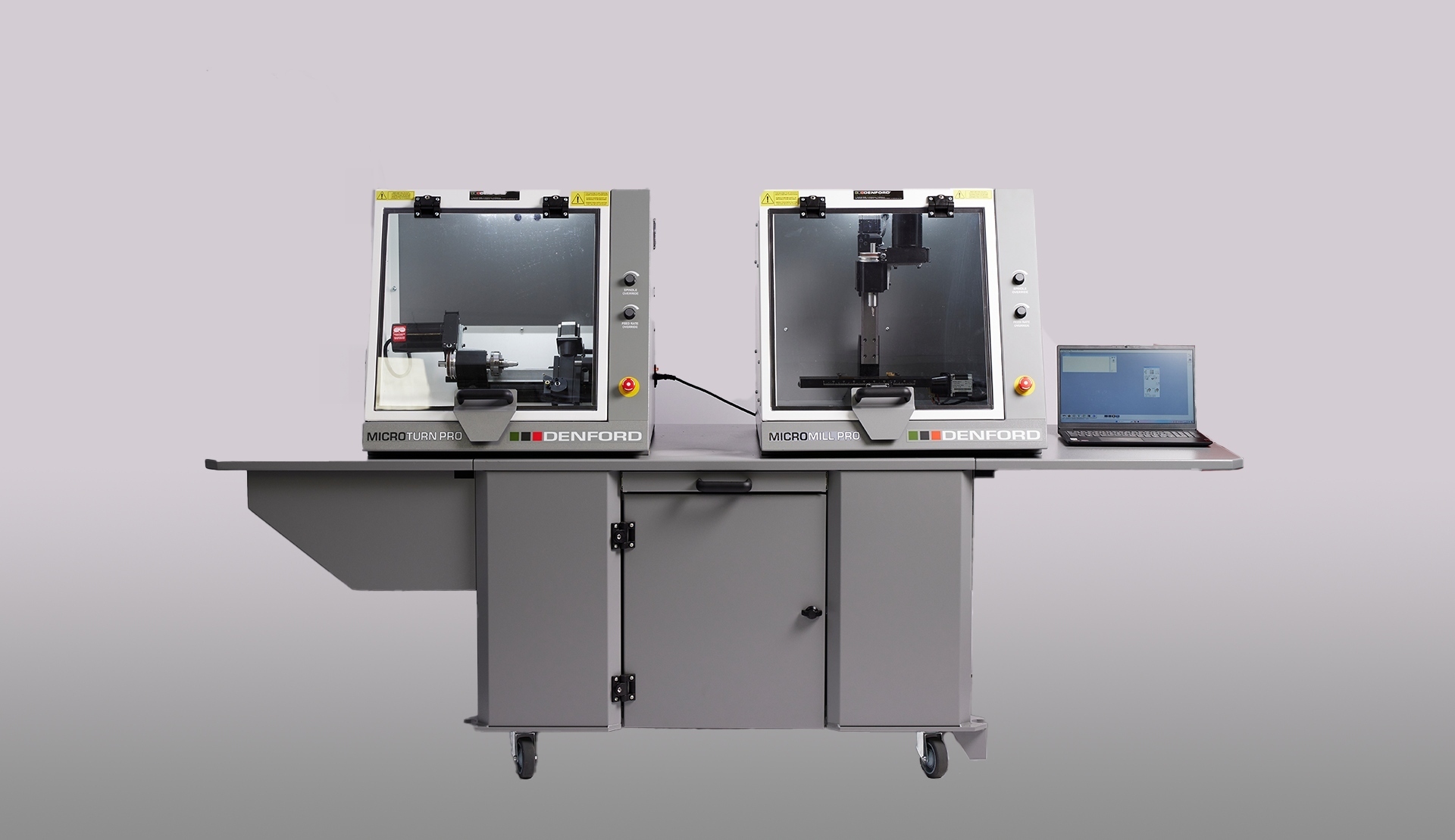

When combined with the Micromill Pro CNC Mill, a Machine Bench, complete with 2 Computer Support Extensions.
NB. Bench Size with Computer Support Extensions: 2500mm x 750mm x 790mm (WxDxH)

Mechanical details

Machine Length	685mm
Machine Depth	654mm
Machine Height	688mm
Machine Weight	80kg
Swing Over Bed	90mm
Travel X Axis	50mm
Travel Z Axis	126mm
Max Spindle Speed	2500rpm
Max. Feed Rate	600mm/min
Power Requirements	Single Phase. 230v - 8 Amps
Spindle Motor	75W
Axes Motor	Stepper
Frequency	50/60 Hz
Electrical Connection	13A Socket
