Turning

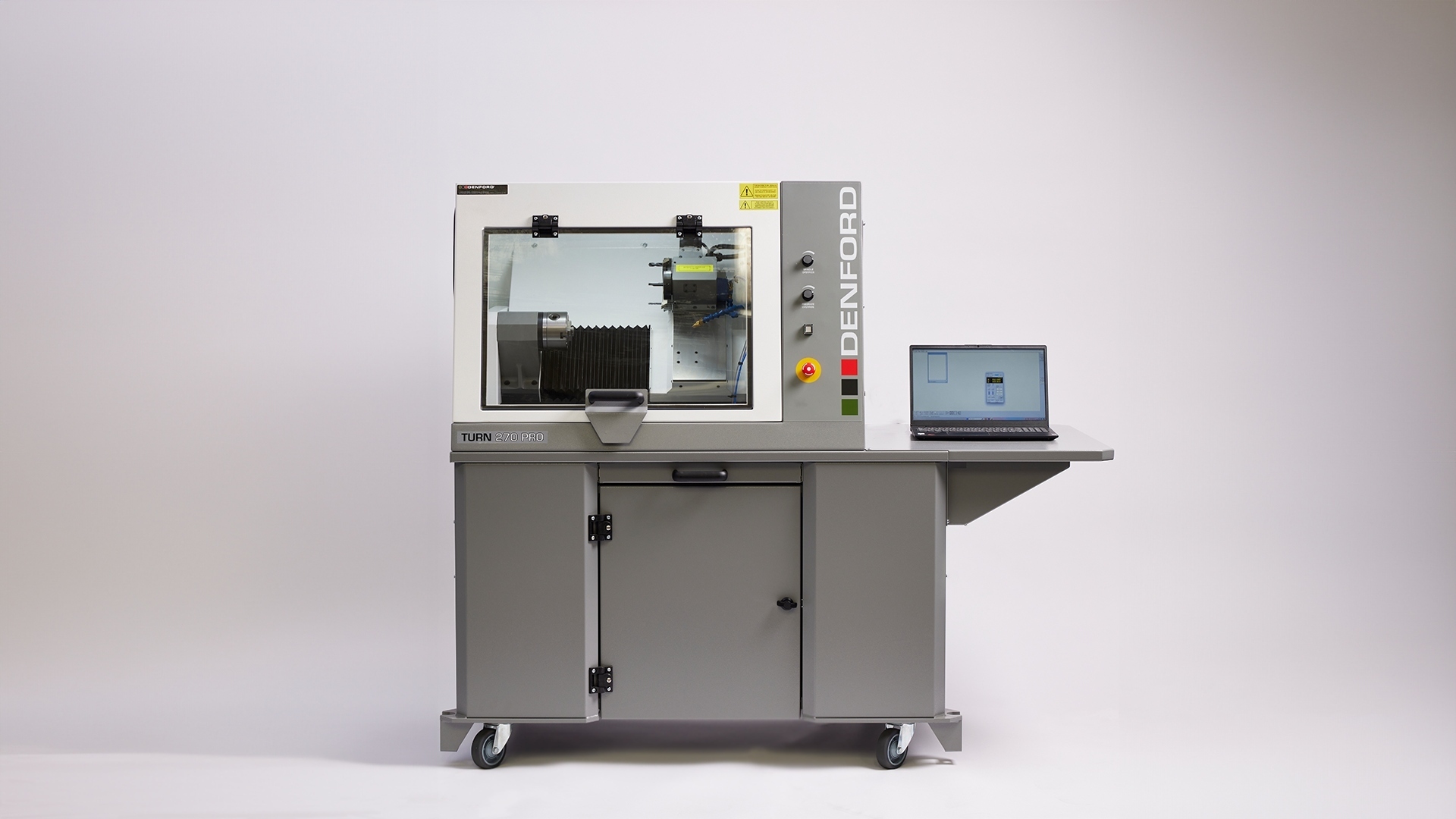

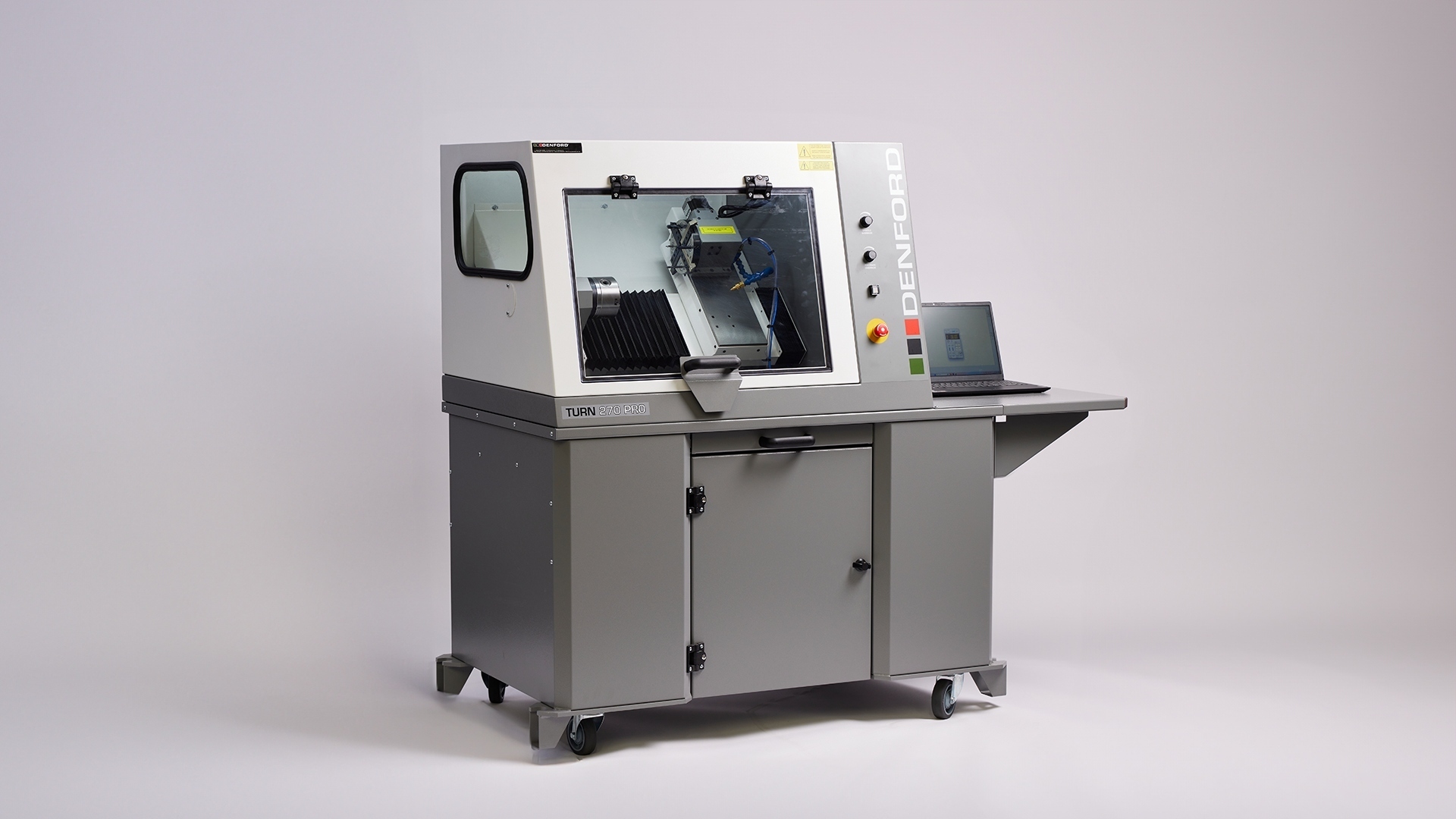

Turn 270 Pro

Entry level CNC lathe

Price on application

This product is built to order and the quote can be customised to your specification.

Value Icons 1

All education levels

Value Icons 1

8-station programmable turret

Value Icons 1

Fully enclosed and safe to use

Entry level machine suitable for all levels of education.

Turn 270 Pro White 005 Resized
FEATURES

Compact design suitable for every environment

A compact 2 axis CNC Lathe with totally enclosed high-visibility interlocking guard, suitable for all levels of education and training.



Turn 270 Pro White 003 Resized
FEATURES

Makes light work of tough materials

Programmable spindle speeds and feed rates make the Turn 270 Pro ideal for cutting a range of resistant materials:

  • Acrylics and other plastics
  • Aluminium and steel
  • Wax

Technical information

Equipment as standard

  • VR CNC Turning Operating Software (PC not included)
  • QuickTURN 2D Design Software (1 seat)

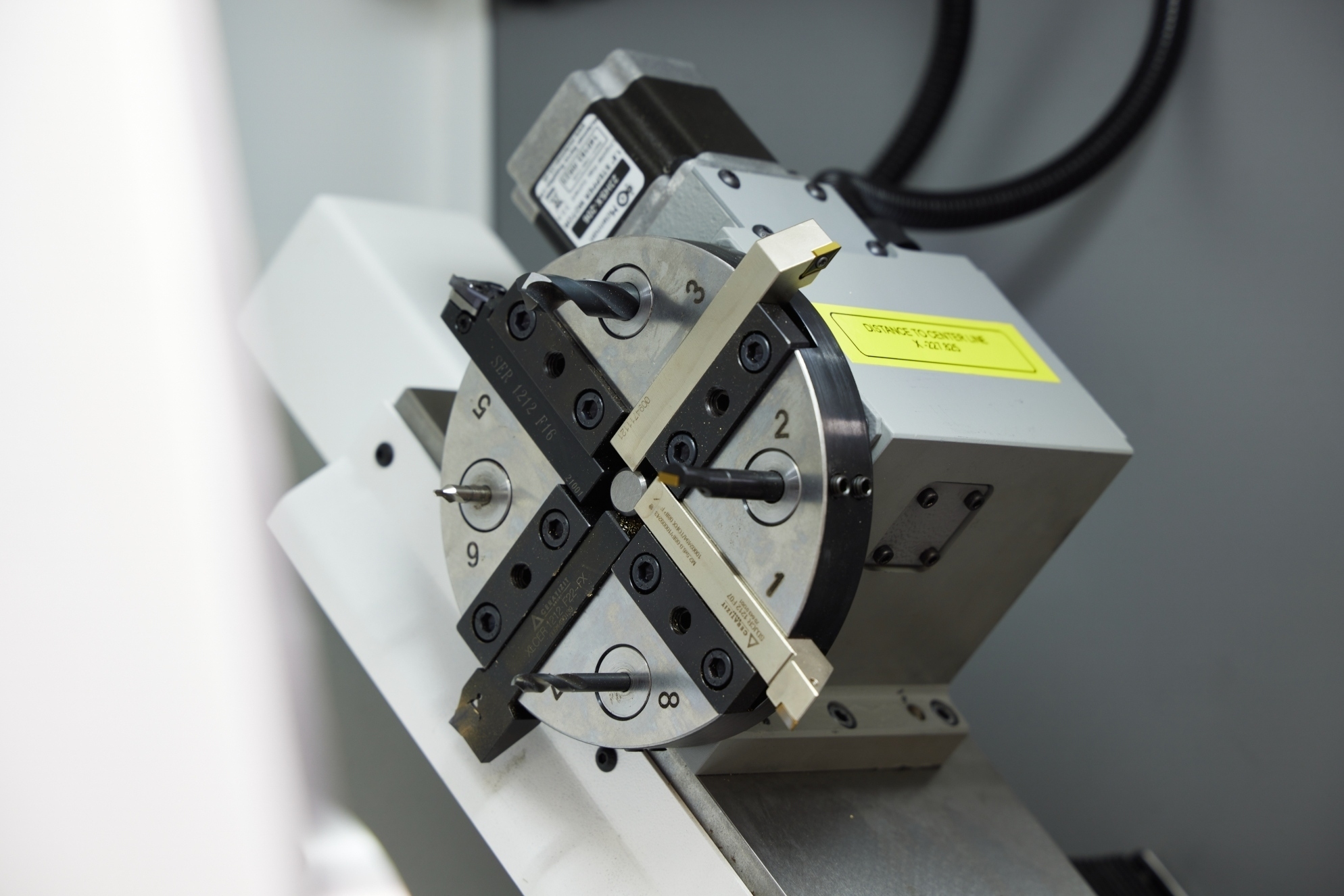

  • 8 Station Programmable Turret
  • Manual Self Centring 100mm 3 Jaw Chuck
  • Installation and Instruction Manuals
  • Right Hand Turning Tool
  • Parting / Grooving tool
  • RJ45 Cable
  • RJ45 to USB adapter

Optional extras

  • Comprehensive Tooling Package

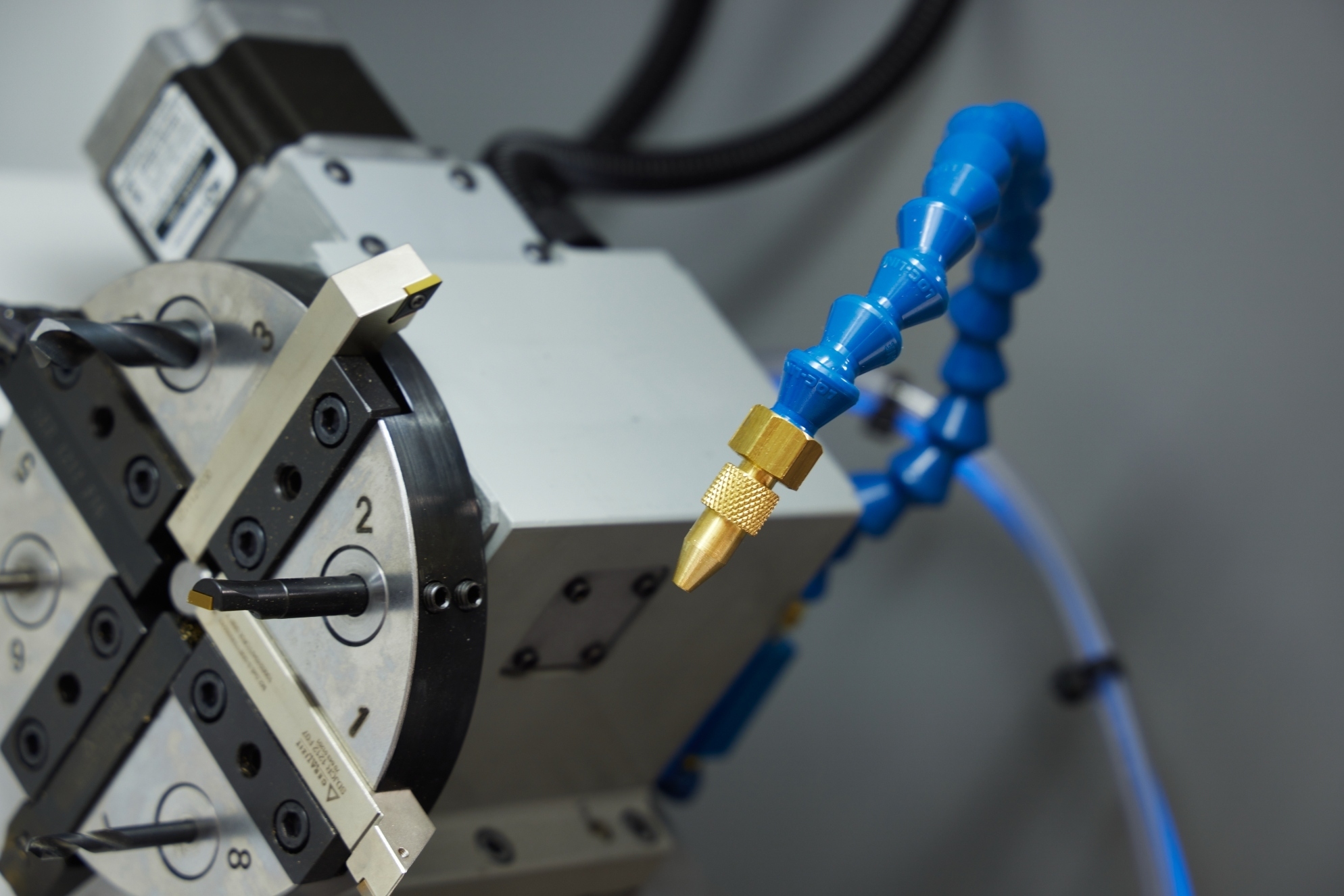

  • Spray Mist Coolant (factory fitted and requires compressed air)
  • Manual Tail Stock with Non-revolving Centre (factory fitted).
  • Machine Bench with Computer Support Extension
  • Pneumatic Guarding
  • Pneumatic Chuck
  • Revolving Centre

Mechanical details

Machine Length 1000mm (39.37in)
Machine Depth 768mm (30.24in)
Machine Height Bench Mounting 675mm (26.57in)
Length with Optional Base 1665mm (65.55in)
Height with Optional Base 1440mm (56.69in)
Machine Weight 140kg (308.65lbs)
Machine Weight with Optional Base 255kg (562.18lbs)
Swing Over Bed 190mm (7.48in)
Swing Over Cross Side 100mm (3.94in)
Distance Between Centres 270mm (10.63in)
Travel X Axis 150mm (5.91in)
Travel Z Axis 225mm (8.86in)
Max Spindle Speed 4000 rpm
Max. Feed Rate 3000mm/min (118.11in/min)
Spindle Bore 26mm (1.02in)
Power Requirements Single Phase
Spindle Motor 1.5kW (2.01HP)
Axes Motors Stepper
Volts 230VAC
Amps 8 Amps
Frequency 50 / 60 Hz
Electrical Connection 13A Socket

Downloads

Turn 270 Pro White 002 Resized

Product Spec Sheet

Turn 270 Pro

Download

382 KB | pdf

Recommended software

All software necessary to control the Turn 270 Pro is included.

Also included is a seat of QuickTURN 2D Design - an easy to use CAD package

QuickTURN 2D Design
QuickTURN 2D Design

QuickTURN is an advanced yet simple to use, wizard based CAD/CAM package for Lathes.

More Info
VR CNC Turning 6
VR CNC Turning 6

VR CNC Turning is a CNC programming software package offering full machine control and virtual reality simulation of CNC Lathes.

More Info
