Turning

Turn 370 Pro

High capacity CNC lathe

Price on application

This product is built to order and the quote can be customised to your specification.

Value Icons 1

Large machining capacity

Value Icons 1

Ideal for cutting a range of resistant materials

Value Icons 1

Fully enclosed and safe to use

Suitable for all levels of education.

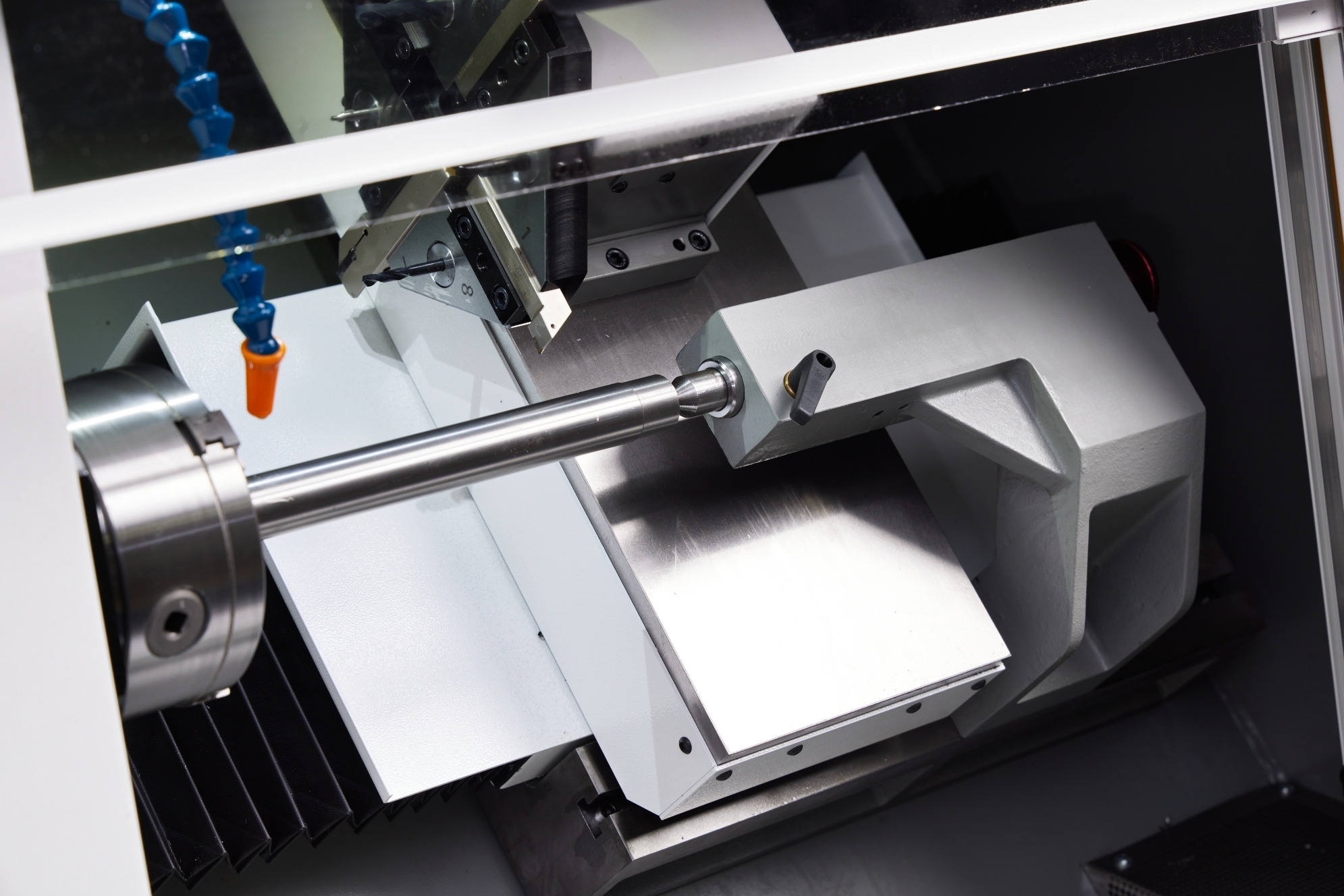

Turn 370 Pro White 007 Resized
FEATURES

High capacity processing of resistant materials

A high capacity 2 axis CNC Lathe complete with flood coolant and industrial cabinet base.

The Turn 370 Pro is totally enclosed with a high visibility interlocking guard, suitable for all levels of education and training.

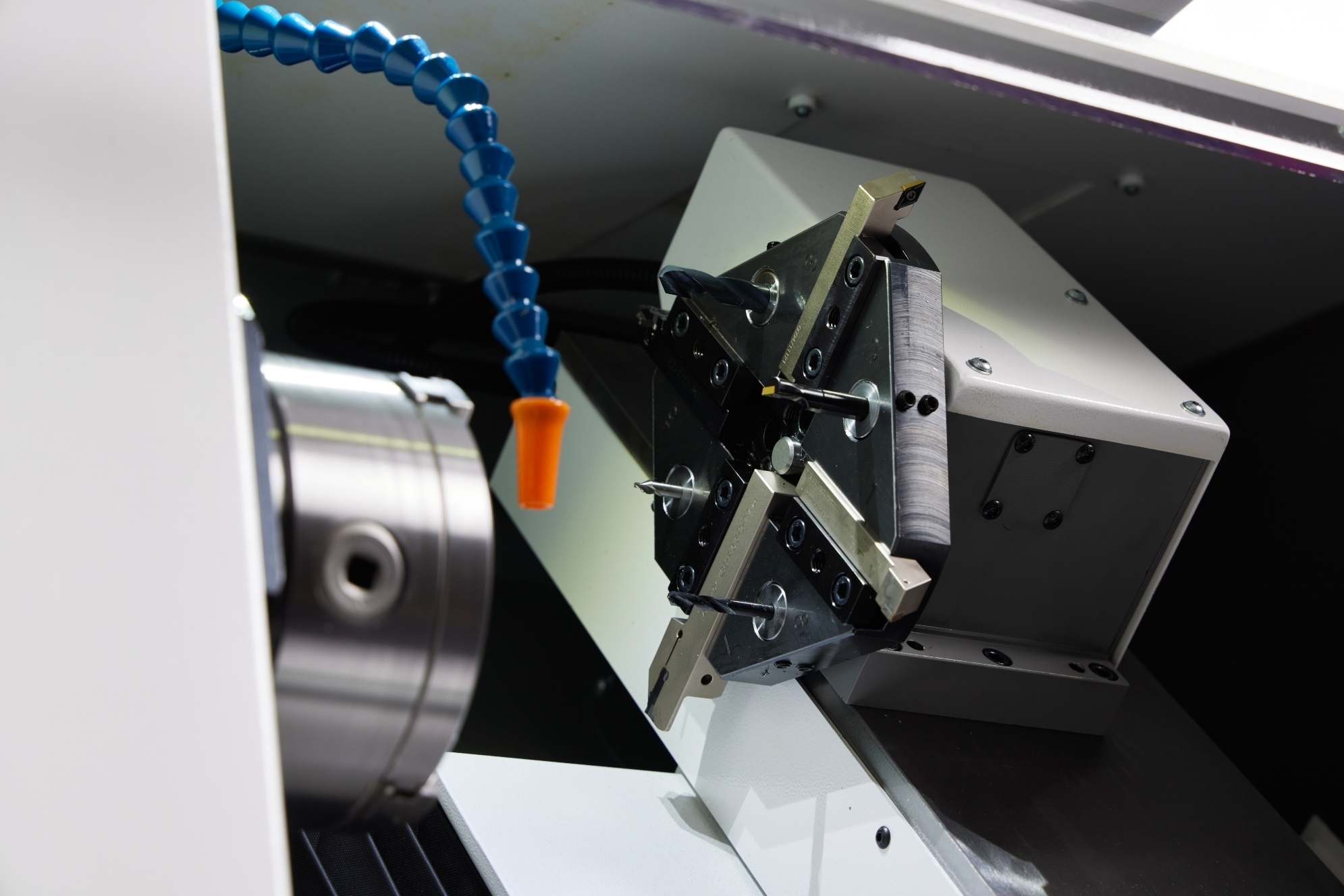

Turn 370 Pro White 004 Resized
FEATURES

Makes light work of tough materials

Programmable spindle speeds and feed rates make the Turn 370 Pro ideal for cutting a range of resistant materials:

  • Acrylics and other plastics
  • Aluminium and steel
  • Wax

Technical information

Equipment as standard

  • VR CNC Turning Operating Software (PC not included).
  • QuickTURN 2D Design software (1 seat)
  • Flood Coolant and Industrial Cabinet Base.
  • 8 Station Programmable Turret, or optional Quick Change Toolpost and Holder.
  • Manual Self Centering 125mm 3 Jaw Chuck.
  • Installation and Instruction Manuals.
  • Ethernet or USB Connection

Optional extras

  • Comprehensive Tooling Package.
  • Manual Tail Stock with Non-revolving Centre.
  • Computer Support Extension for Machine Bench.
  • Automatic Lubrication System
  • Pneumatic Chuck
  • Pneumatic Guarding
  • Revolving Centre

Mechanical details

Machine Length 1330mm (52.36in)
Machine Depth 750mm (29.53in)
Machine Height 1445mm (56.89in)
Length with Optional PC Arm 1910mm (75.20in)
Open Door Height Above Machine 385mm (15.16in)
Machine Weight 400kg (881.85lbs)
Swing Over Bed 260mm (10.24in)
Distance Between Centres 370mm (14.57in)
Travel X Axis 200mm (7.87in)
Travel Z Axis 275mm (10.83in)
Max Spindle Speed 3700rpm
Max. Feed Rate 3000mm/min (118.11in/min)
Spindle Bore 35mm (1.38in)
Power Requirements Single Phase
Spindle Motor 2.2kW (2.95HP)
Axes Motors Stepper
Volts 230VAC
Amps 10 Amps
Frequency 50 / 60 Hz
Electrical Connection 16A MCB Protected

Downloads

Turn 370 Pro White 001 Resized

Product Spec Sheet

Turn 370 Pro

Download

369 KB | pdf

Recommended software

All software necessary to control the Turn 370 Pro is included.

Also included is a seat of QuickTURN 2D Design - an easy to use CAD package

QuickTURN 2D Design
QuickCAM 2D Design

QuickTURN is an advanced yet simple to use, wizard based CAD/CAM package for Lathes.

More Info
VR CNC Turning 6
VR CNC Turning 6

VR CNC Turning is a CNC programming software package offering full machine control and virtual reality simulation of CNC Lathes.

More Info
