Race System Package - Halo Deceleration
Competition standard race package with 'Halo' deceleration system.
Price on application
This product is built to order and can be customised to your specification.
Durable and easy to assemble.
Controlled Deceleration
Ideal for regional and national finals and for testing your cars in preparation for events.
FEATURES
The Track
Designed to be durable and moisture resistant, its light aluminium construction makes it easy to assemble, break down and store. The elevated track measures 23.65 meters in length, comprising 11 sections and 12 support legs and incorporating cable management.

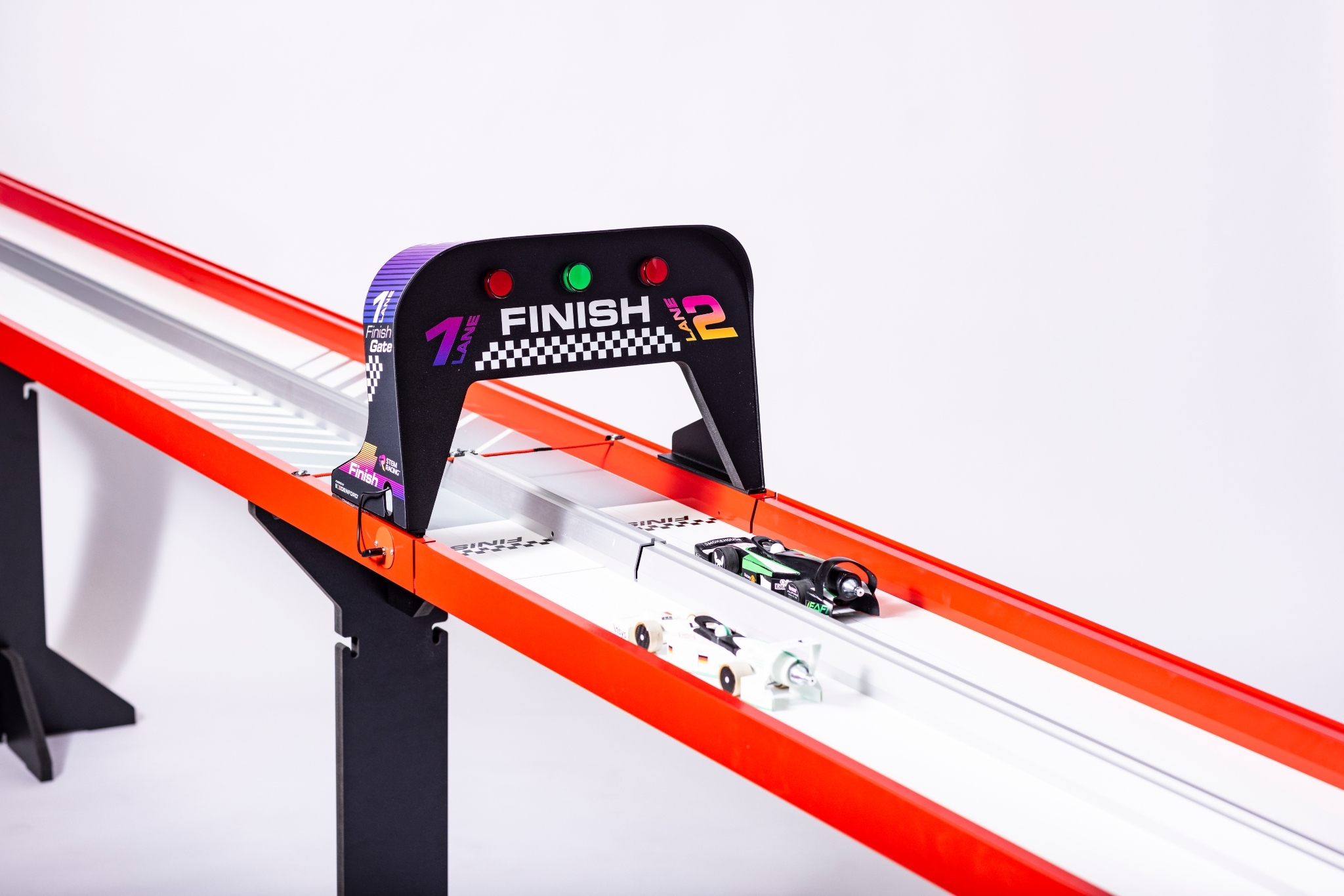

Timing sensors are built into the finish section of the track for accurate and consistent finishing times.
FEATURES
The Race System
The Race System consists of everything you need to get racing.
The package includes ergonomically designed and STEM Racing branded components, including web interface controls and infra-red finish line technology.
FEATURES

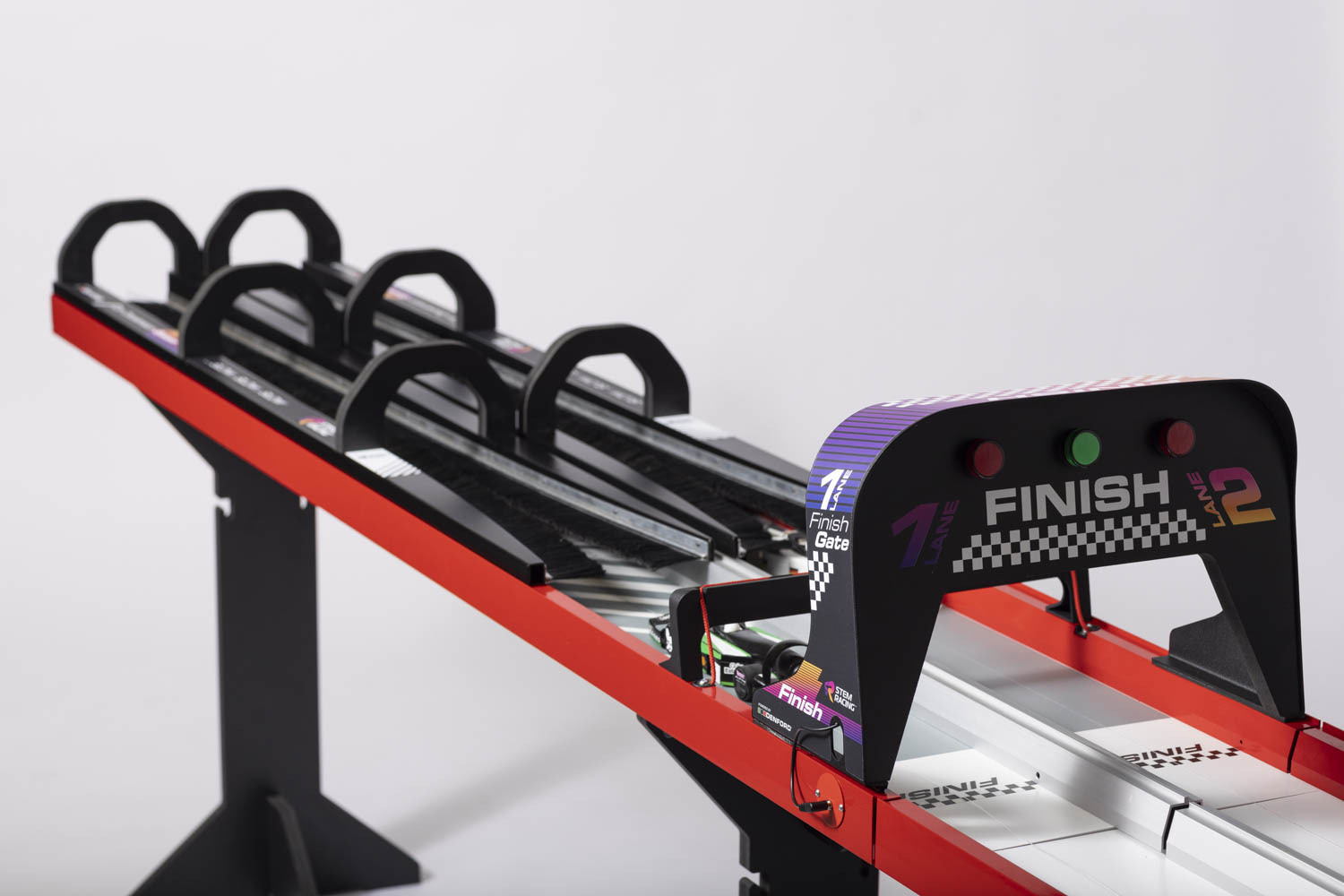

Halo Deceleration System

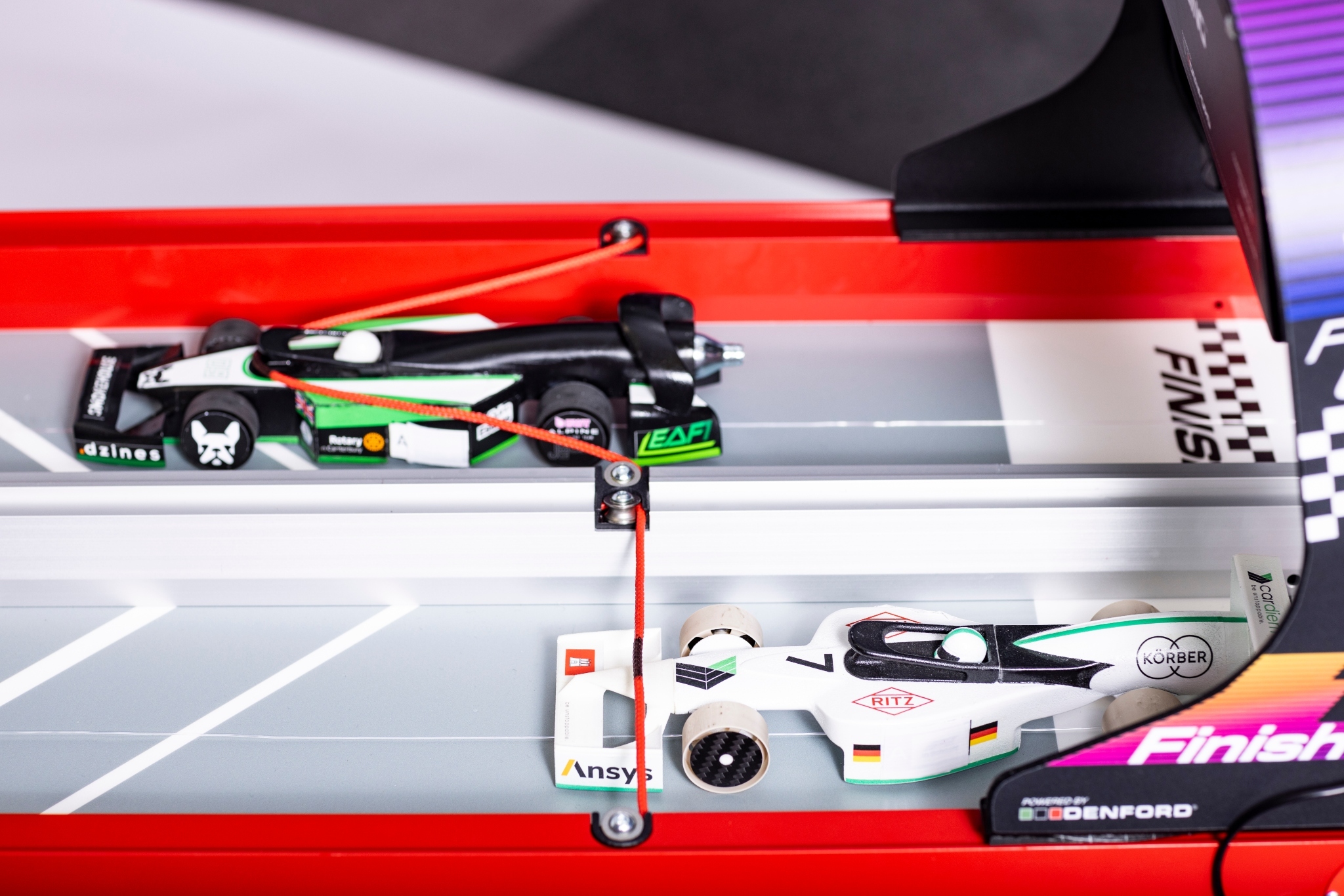

The Halo Deceleration System is an innovative mechanism designed to safely slow down STEM Racing cars after they cross the finish line.
This system integrates a physical 'halo' structure into the car's design, echoing the driver crash-protection systems used in real Formula 1 cars. The halo features a circular notch that aligns with an arresting cable positioned in the final track section.
Upon crossing the finish line, the arresting cable engages with the halo's notch, effectively decelerating the car.
Technical information
The Track
- Durable and moisture resistant.
- Light aluminium construction.
- Easy to assemble, break down and store.
- 23.65m in length.
- 11 track sections.
- 12 support legs.
- Cable management.
- Timing sensors built in for accurate finishing times.

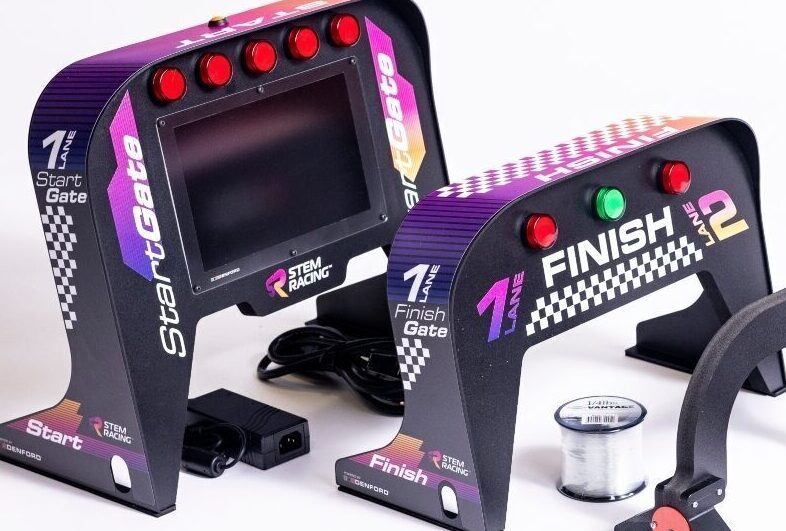

The Race System
- Ergonomic design.
- Cables plugging into the Start and Finish gates.
- Shade for Start and Finish lights.
- High resolution 9" screen (1280x800) with antiglare.
- Multiple modes - Auto, Manual and Reaction Time.
- Multi voltage power supply.
- Wifi data transmission.
- Programmable control allowing team member names to be added.
- Live results.
- Finish gate indicator showing power applied and empty lanes.
- Blue spotlight indicator to show when Finish Line is crossed.
- Frequency encoded infra-red finish line technology, with emitters and receiver built in to the track.
- Cable management.
The Start Boxes
- Hardened silver steel firing pin for extended life.
- Torsion spring latched under pressure for consistent release.
- Tool steel latch mechanism to provide consistent release and prevent wear.
- Latch release lever to allow the spring to be un-cocked
- Substantial base to reduce recoil
- Powerful release solenoid.
- Fully guarded.
Optional Extras

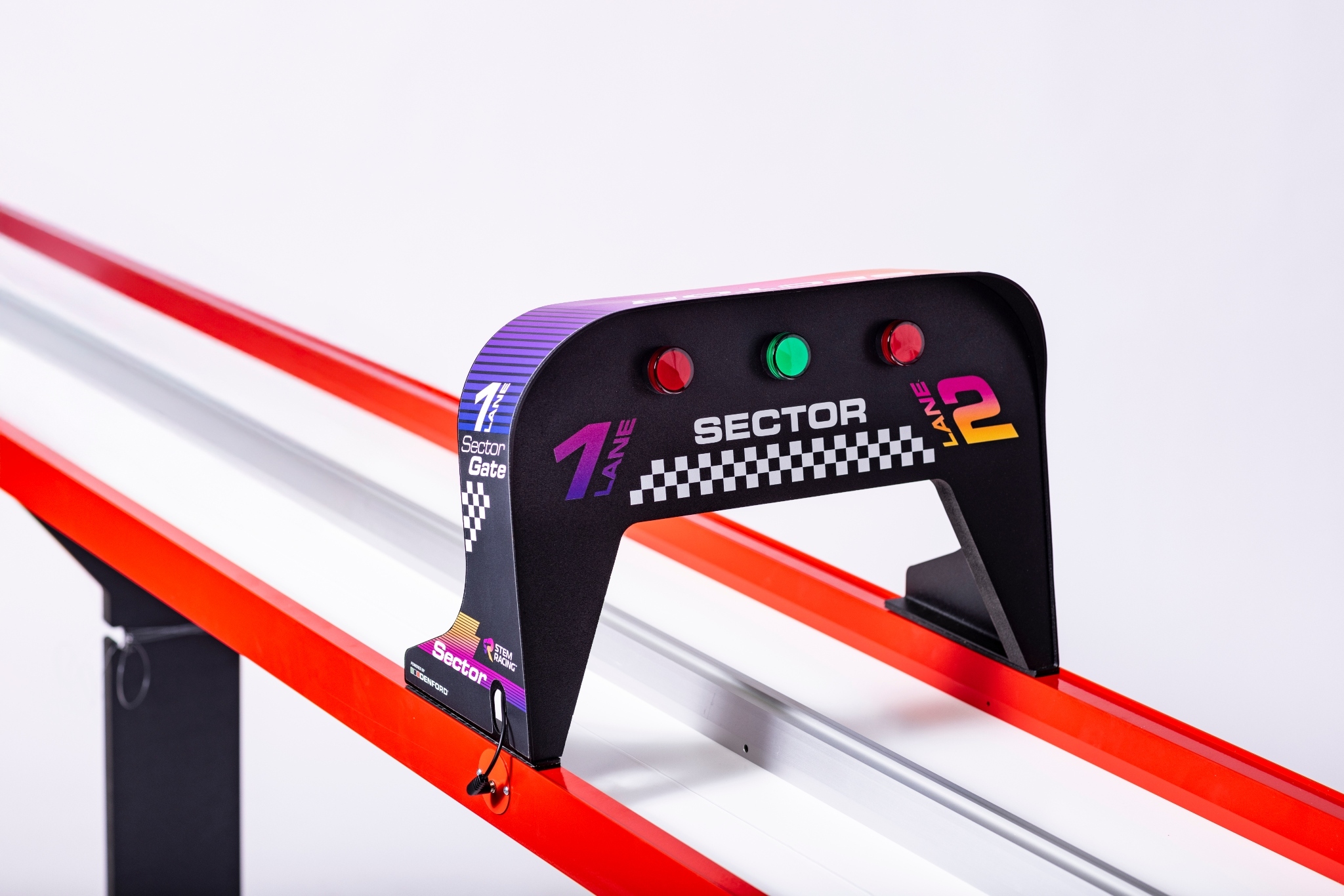

- Sector Gate Timing System
- Event Race Triggers (set of 2) Upgrade
- Air Trace Visualisation System
- Flight Case for Elevated Track
- Flight Case for Race Control System
- Flight Case for Race Control System and Sector Gate
