Routing
Router 2600 / 2600 Pro
Large Capacity 3 Axis CNC Router
Price on application
This product is built to order and can be customised to your specification.
Resistant materials
All education levels
The ideal CNC all-rounder.
FEATURES
Quality, precision, maintenance-free routing
The Router 2600 / 2600 Pro offers large, flexible machining capacity making it the ideal choice for education and training.

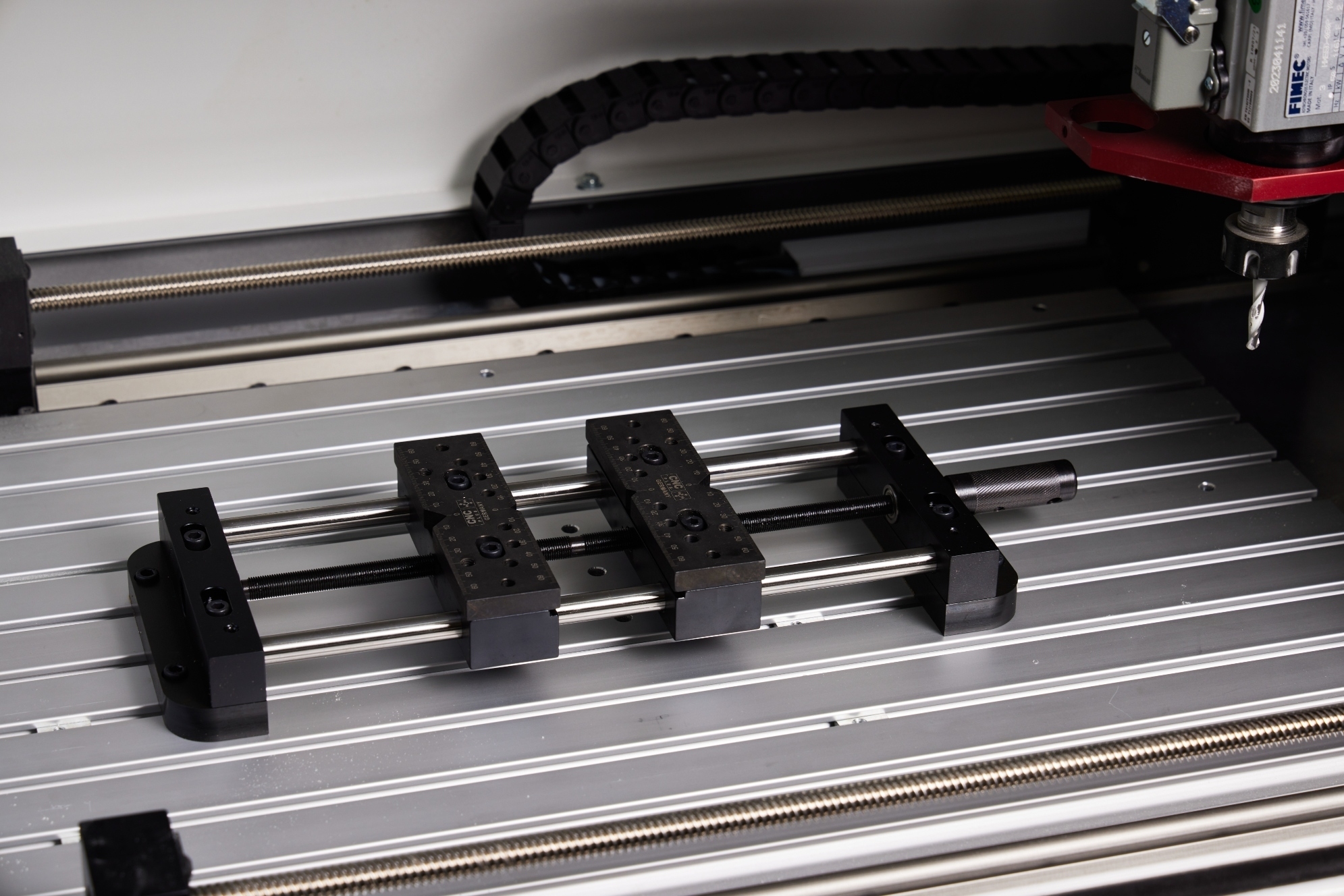

This expanded workspace allows multiple fixtures to be bolted to the T-slot table simultaneously, making it perfect for handling consecutive or varied projects efficiently.
FEATURES
Makes light work of tough materials
The Router 2600 / 2600 Pro is perfect for schools and college environments:

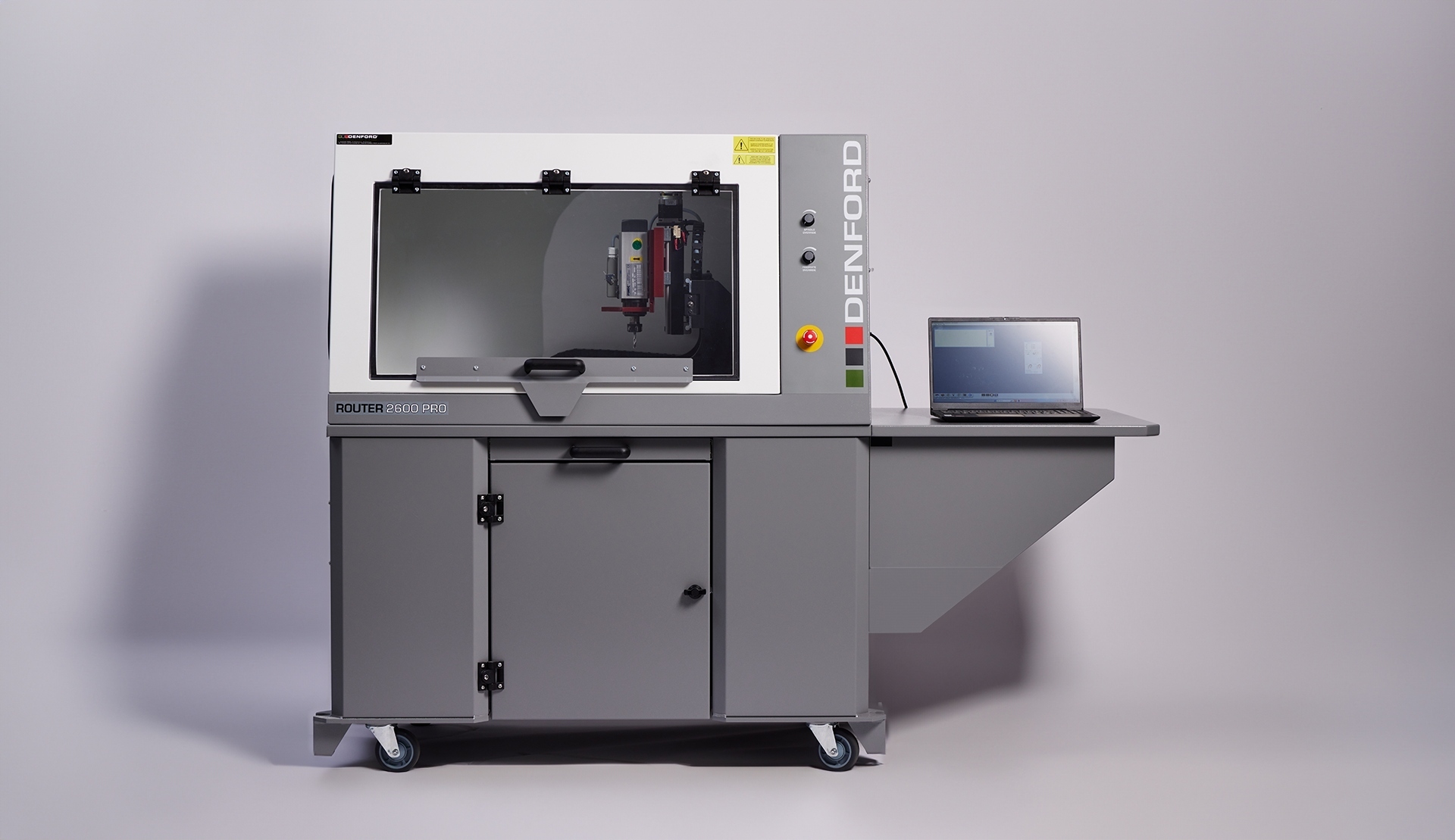

- Desktop or bench-mounted. (Shown with optional machine bench and support extension).
- Multiple fixtures can be fitted together
- Dry lubrication ensures low maintenance
- Fits through single doorway
- Non-ferrous metals (Pro)
Technical information
Equipment as standard
- VR CNC Milling Operating Software (PC not included).
- QuickCAM 2D Design software (1 seat)
- Aluminium T Slot Table.
- Outlet for Dust Extraction System.
- Workholding Clamps.
- Installation and Instruction Manuals.
- Ethernet or USB Connection.
- *PC Not included.
Optional extras
- Recommended Tooling Package
- Recommended Set of Quick Change Toolholders & Collet
- Self-Centring Vice
- STEM Racing Car Manufacturing Fixture

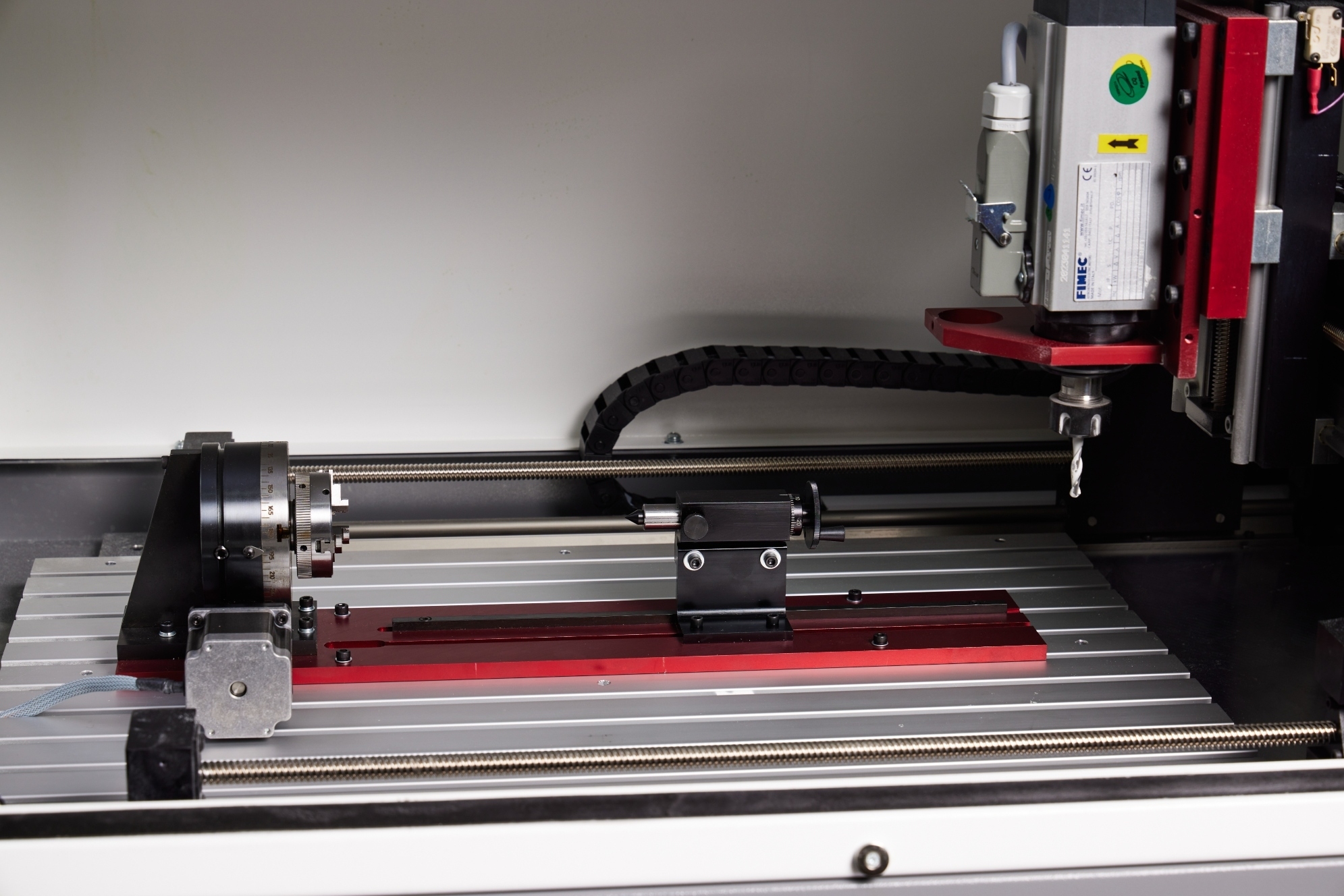

- 4th Axis Programmable Rotary Fixture (Inc QuickCAM 4D, site licence)
- STEM Racing 4th Axis Car Manufacturing Conversion Kit
- 3D Scanning Attachment
- Integrated Dust Pro 100 Extraction Unit for Machine Bench
- Dust Pro 50 Extraction Unit
- Machine Bench
- Computer Support for Machine Bench
- Large Format Vacuum Bed
- Vacuum Pads
- Floating Head
Important note
For applications involving tougher materials, such as steel, we recommend the VMC 1300 Pro for optimal performance.
Mechanical details
| Machine Length | 1200mm |
| Machine Depth | 765mm |
| Machine Height | 675mm |
| Length with Optional PC Arm | 1910mm |
| Machine Height with Optional Base | 1440mm |
| Machine Length with Optional Base | 1325mm |
| Machine Weight | 150kg |
| Machine Weight with Optional Base | 255kg |
| Table Size | 700 x 430mm |
| Travel X Axis | 600mm |
| Travel Y Axis | 400mm |
| Travel Z Axis | 110mm |
| Beam Clearance | 150mm |
| Max Spindle Speed | 29000rpm / 24000rpm |
| Non-Ferrous Metal Cutting | Pro Only |
| Spindle Speed Control | Pro Only |
| Spindle Speed Override | Pro Only |
| Max. Feed Rate | 5000mm/min |
| Max. 3D Profiling | 4500mm/min |
| Spindle Motor 110V Supply | 800W - 1.07HP / 1.0kW - 1.34HP |
| Spindle Motor 230V Supply | 1.0kW - 1.34HP |
| Axes Motors | Stepper |
| Power Requirements | Single Phase |
| Volts | 230V - 8 Amps / 110V - 10 Amps |
| Frequency | 50 / 60 Hz |
| Electrical Connection | 13A Socket |
Downloads
Product Spec Sheet
Router 2600 / 2600 Pro
Download
391 KB | pdf
Recommended software
All software necessary to control the Router 2600/ Router 2600 Pro is included.
Also included is a seat of QuickCAM 2D Design - an easy to use 2D CAD package.
- 2D Designs: The VR Milling software can import DXF, DWG, EPS and Gerber files in addition to G & M code programs and as such will link with programs such as Techsoft 2D Design and CorelDraw.
- 3D Designs: To enable import of STL files from 3D design packages, QuickCAM Pro software is required.
QuickCAM 2D Design
QuickCAM 2D Design Software is an advanced, yet simple to use, wizard based 2D CAD/CAM package, which now includes V-Carve Extension as standard.
More Info
QuickCAM PRO
QuickCAM Pro is an advanced, yet simple to use, wizard based CAM package, which is used to create cutter paths for machining 3D parts on a milling machine or router.
More Info
