Compact 1000 / 1000 Pro

Compact 3 Axis CNC Router

Price on application

This product is built to order and the quote can be customised to your specification.

Value Icons 1

For all educational levels

Value Icons 1

Compact design

Value Icons 1

Suitable for a wide range of projects

Compact and powerful, perfect for cutting resistant materials.

Compact 1000 White 006 Resized
FEATURES

Suitable for all levels of learning

The Compact 1000/1000 Pro is ideal for cutting a range of resistant materials such as hard and soft wood, plastic, modelling foam, acrylic and prototyping materials. In addition, the Compact 1000 Pro can cut non-ferrous metals.

Compact 1000 White 004 Resized
FEATURES

Makes light work of tough materials

The Compact 1000 / 1000 Pro’s powerful spindle motor easily cuts through a range of resistant materials, including non-ferrous metals.

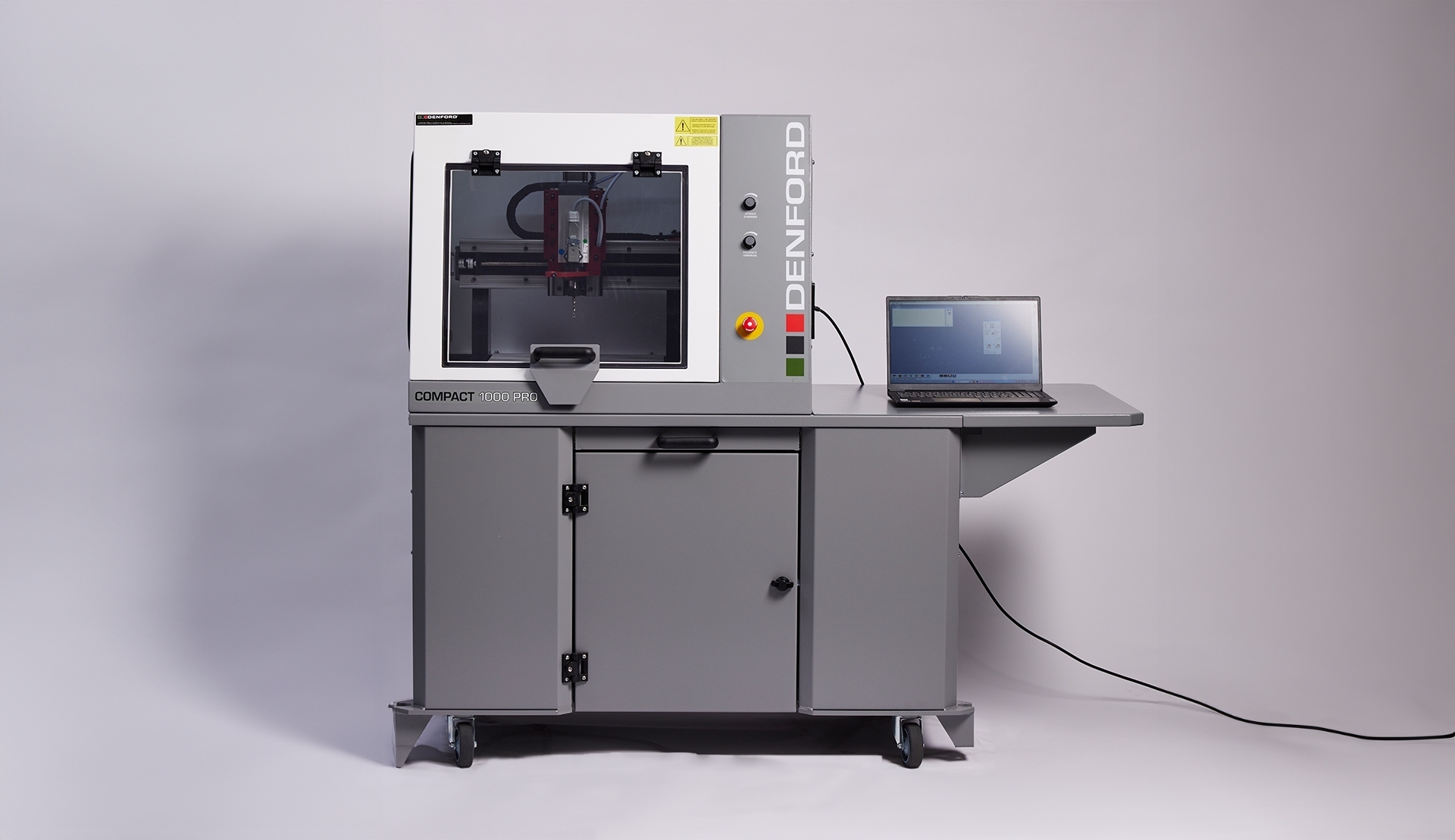

  • Desktop or bench-mounted (shown with optional machine bench and support extension)

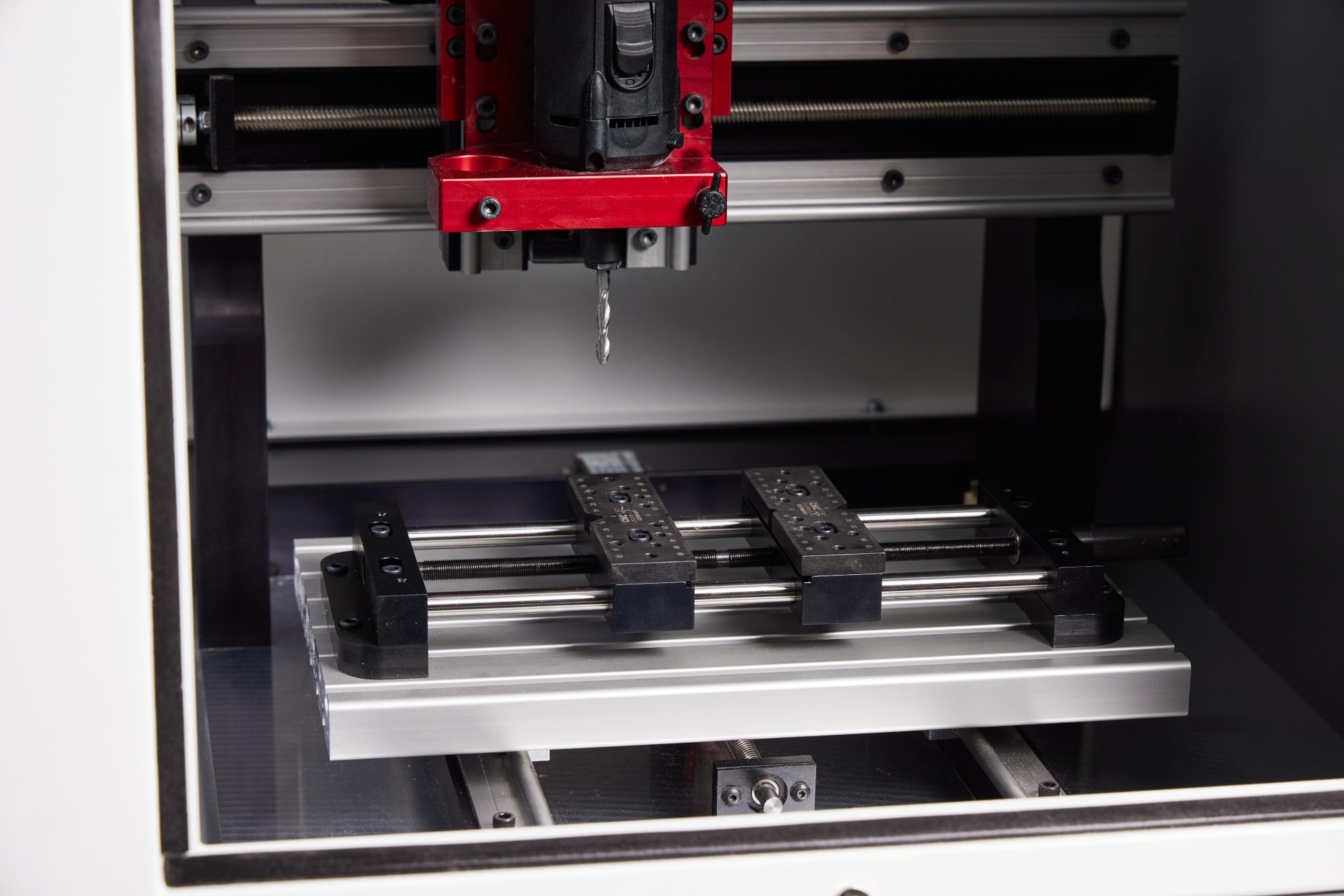

  • Wide range of fixture choices
  • Suitable for a wide range of projects

Technical information

Equipment as standard

  • VR CNC Milling Operating Software (PC not included).
  • QuickCAM 2D Design software (1 seat)

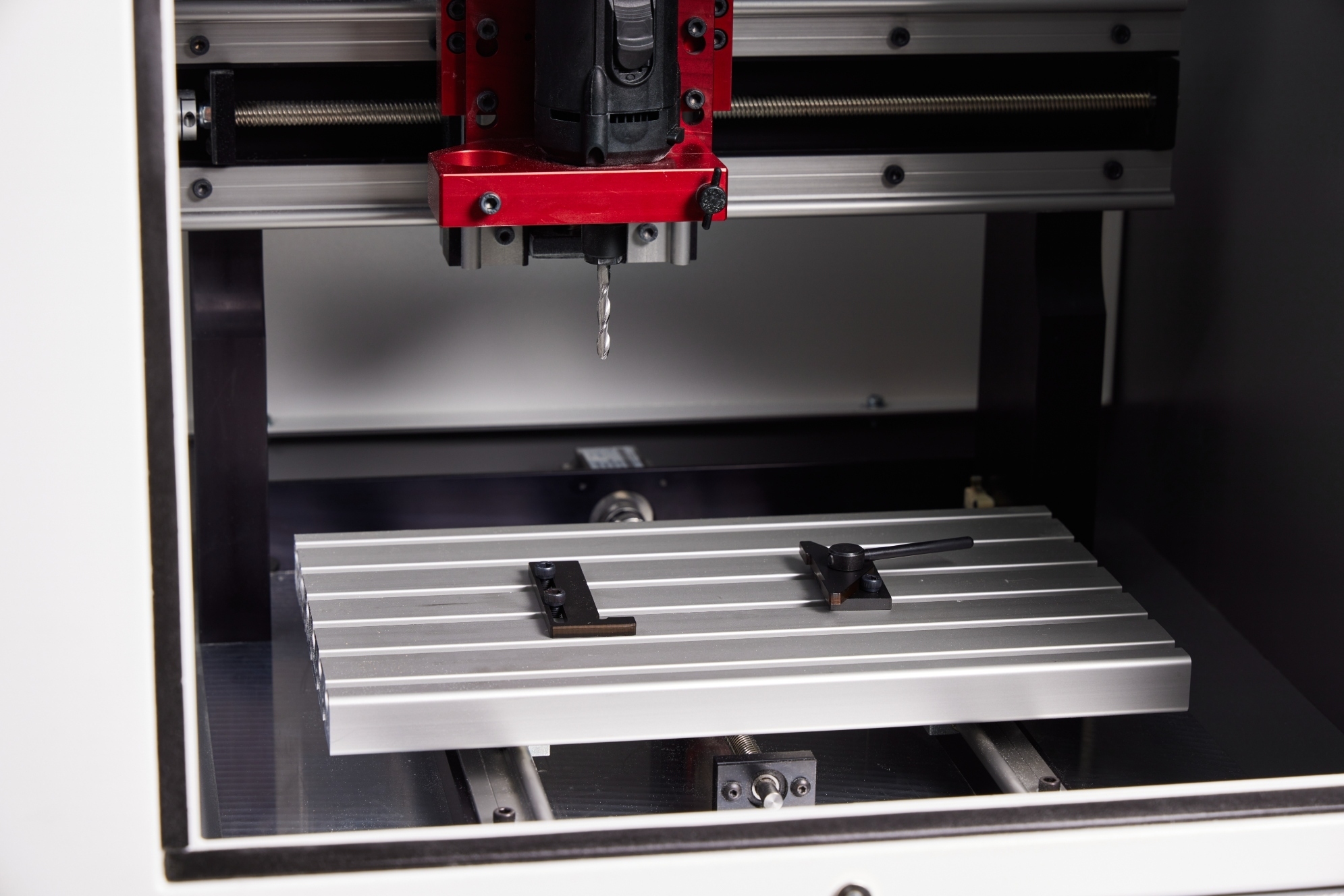

  • Aluminium T Slot Table.
  • Outlet for Dust Extraction System.
  • Workholding Clamps.
  • Installation and Instruction Manuals.
  • Ethernet or USB Connection.
  • *PC Not included

Optional extras

  • Recommended Tooling Package
  • Recommended Set of Quick Change Toolholders & Collet
  • Self-Centring Vice

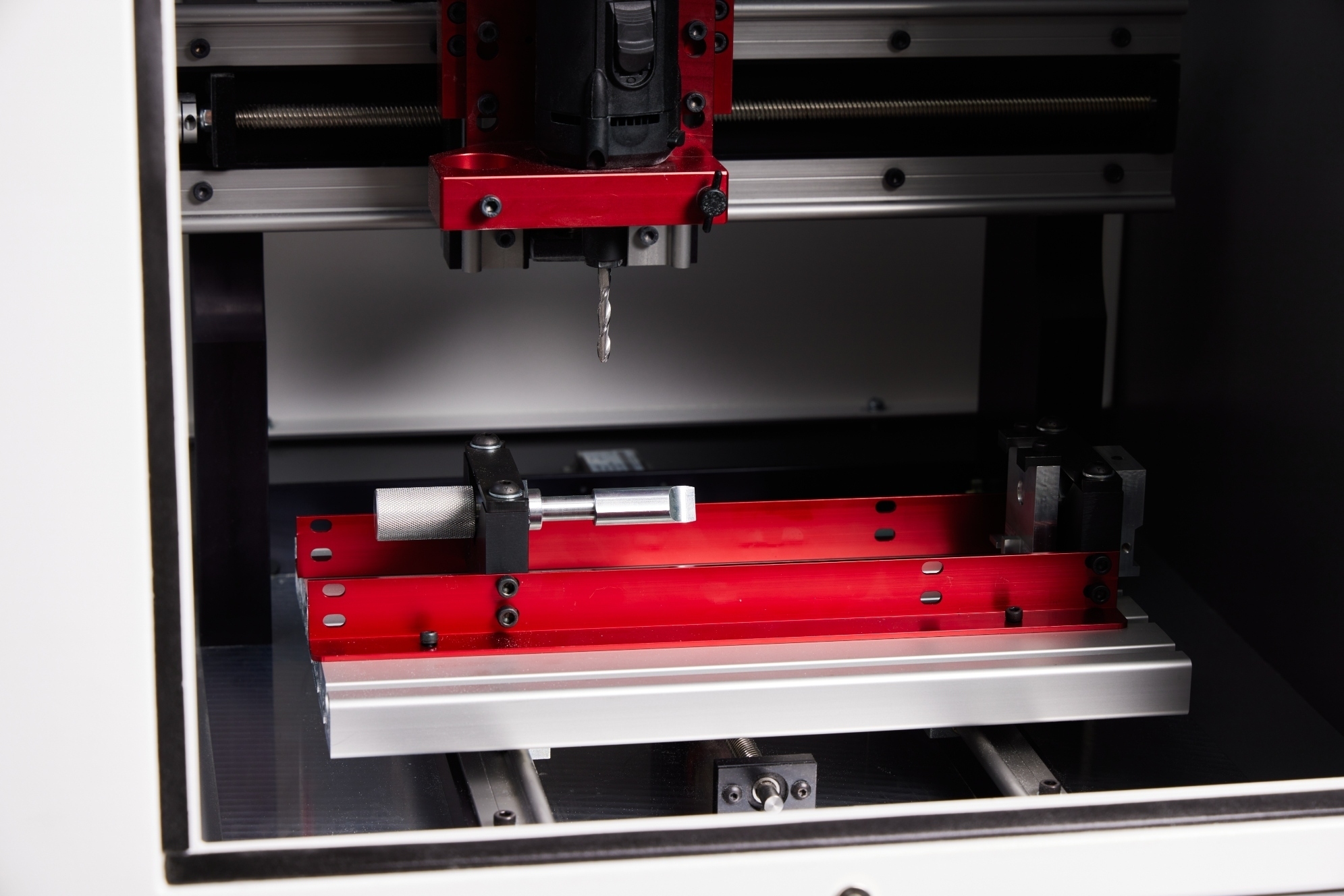

  • STEM Racing Car Manufacturing Fixture

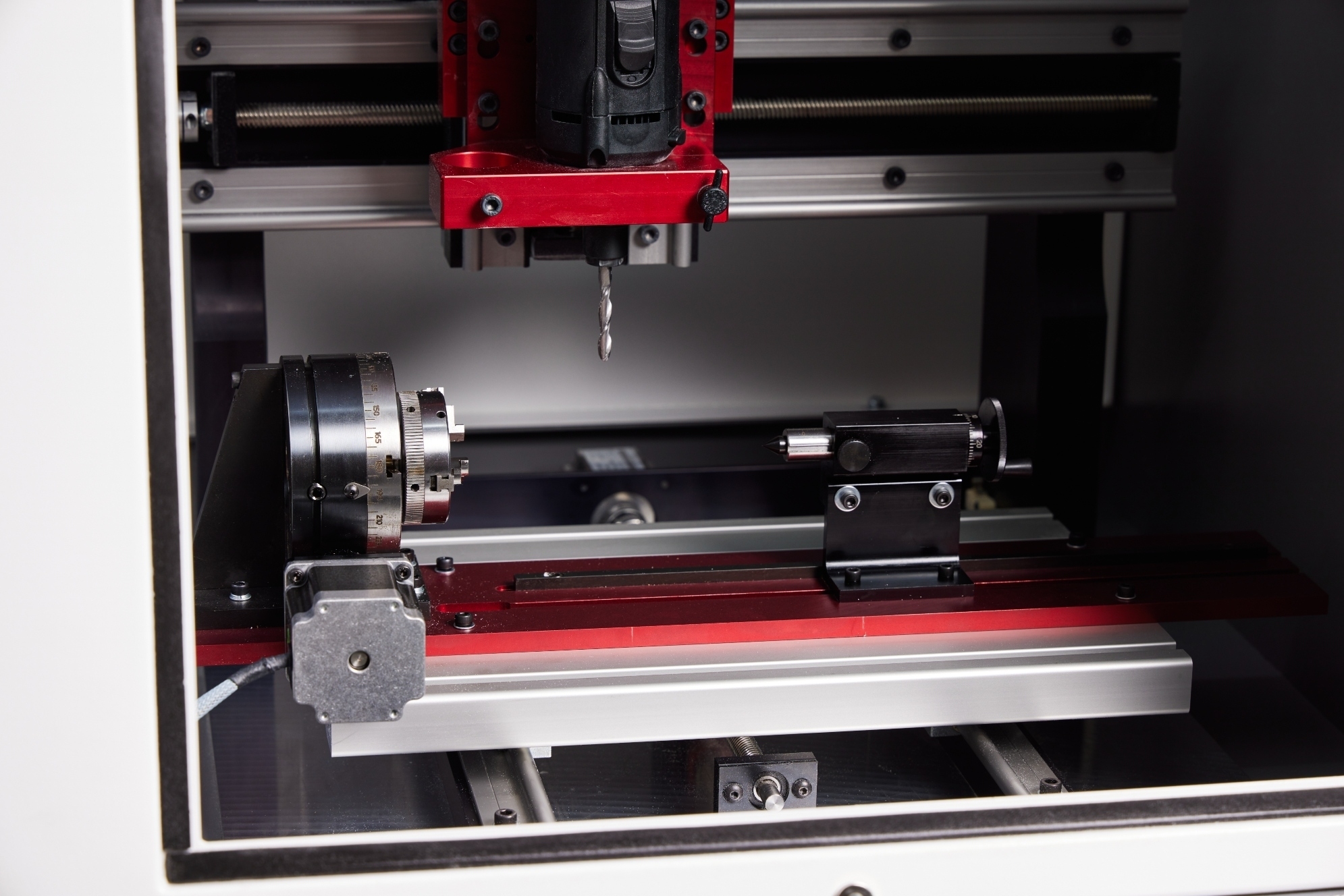

  • 4th Axis Programmable Rotary Fixture, including QuickCAM 4D (Site licence)
  • STEM Racing 4th Axis Car Manufacturing Conversion Kit
  • Machine Bench Complete with Computer Support Extension
  • Dust Extraction Unit - Integrated in machine bench, or stand-alone
  • 3D Scanning Attachment
  • Vacuum Pads
  • Floating Head

Important note

While the Compact 1000 / 1000 Pro accommodates a wide range of fixtures, only one can be used at a time. For workflows requiring multiple fixtures or offsets for consecutive projects, we recommend the Router 2600 / 2600 Pro, which supports simultaneous use of multiple fixtures. For applications involving tougher materials, such as steel, we recommend the VMC 1300 Pro CNC Mill for optimal performance.

Mechanical details

Machine Length 875mm (34.45in)
Machine Depth 765mm (30.12in)
Machine Height 675mm (26.57in)
Machine Length with Optional Base 1678mm (66.06in)
Machine Height with Optional Base 1440mm (56.69in)
Machine Weight 116kg (255.74lbs)
Machine Weight with Optional Base 230kg (507.06lbs)
Table Size 400x240mm (15.75 x 9.45in)
Travel X Axis 400mm (15.75in)
Travel Y Axis 240mm (9.45in)
Travel Z Axis 110mm (4.33in)
Beam Clearance 140mm (5.51in)
Max. Spindle Speed 29000rpm (Compact 1000) / 24000rpm (Pro)
Non-Ferrous Metal Cutting Pro Only
Spindle Speed Control Pro Only
Spindle Speed Override Pro Only
Max. Feed Rate 5000mm/min (196.85in/min)
Max. 3D Profiling 4500mm/min (177.17in/min)
Power Requirements Single Phase
Volts / Amps 230V - 8 Amp / 110 V - 10 Amp
Spindle Motor 110 Supply 800W (1.07HP) / 1.0kW (1.34HP)
Spindle Motor 230V Supply 530W (0.71HP) / 1.0kW (1.34HP)
Axes Motor Stepper
Frequency 50-60 Hz
Electrical Connection 13A Socket

Downloads

Compact 1000 Pro White 001 Resized

Product Spec Sheet

Compact 1000 / 1000 Pro

Download

348 KB | pdf

Recommended software

All software necessary to control the Compact 1000/1000 Pro is included.

Also included is a seat of QuickCAM 2D Design - an easy to use 2D CAD package.

  • 2D Designs: The VR Milling software can import DXF, DWG, EPS and Gerber files in addition to G & M code programs and as such will link with programs such as Techsoft 2D Design and CorelDraw.
  • 3D Designs: To enable import of STL files from 3D design packages, QuickCAM Pro software is required.
Quick CAM 2 D Design
QuickCAM 2D Design

QuickCAM 2D Design Software is an advanced, yet simple to use, wizard based 2D CAD/CAM package, which now includes V-Carve Extension as standard.

More Info
Quick CAM Pro
QuickCAM PRO

QuickCAM Pro is an advanced, yet simple to use, wizard based CAM package, which is used to create cutter paths for machining 3D parts on a milling machine or router.

More Info
