Routing
MCR 100: STEM Racing CNC Router
STEM Racing Router for Schools
Price on application
This product is built to order and the quote can be customised to your specification.
Simple, repeatable setup
Compact, enclosed design
Purpose-built CNC router for STEM Racing car manufacture

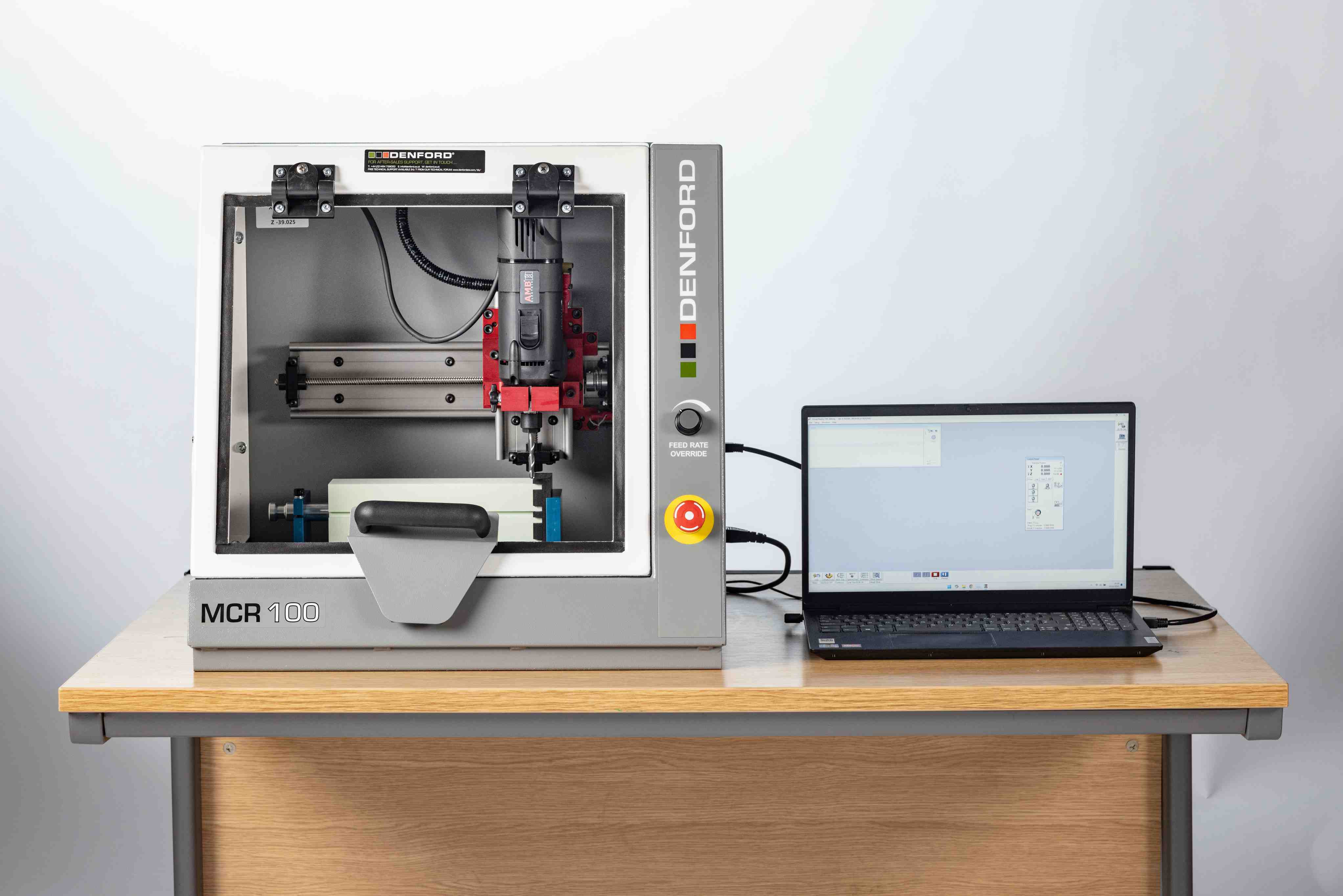

The Denford MCR 100 is a purpose-built, desktop 3-axis CNC router for manufacturing STEM Racing cars in schools and colleges. Its compact footprint, fully enclosed interlocking guard and dedicated workholding fixture provide an accessible introduction to CNC machining and computer-aided manufacturing.
Designed specifically for STEM Racing—formerly F1 in Schools—the MCR 100 is supplied with VR CNC Milling operating software, QuickCAM Pro with STEM Racing Car Wizard, dedicated model-block workholding and a long-series cutting tool. Preset fixture offsets help simplify setup and enable students to turn their digital car designs into accurately manufactured race cars.
The MCR 100 is ideal for schools seeking a focused, cost-effective route into STEM Racing. For wider CNC projects and a broader choice of materials and fixtures, the Compact 1000 range is the more appropriate option
FEATURES
An accessible introduction to CNC manufacturing for schools

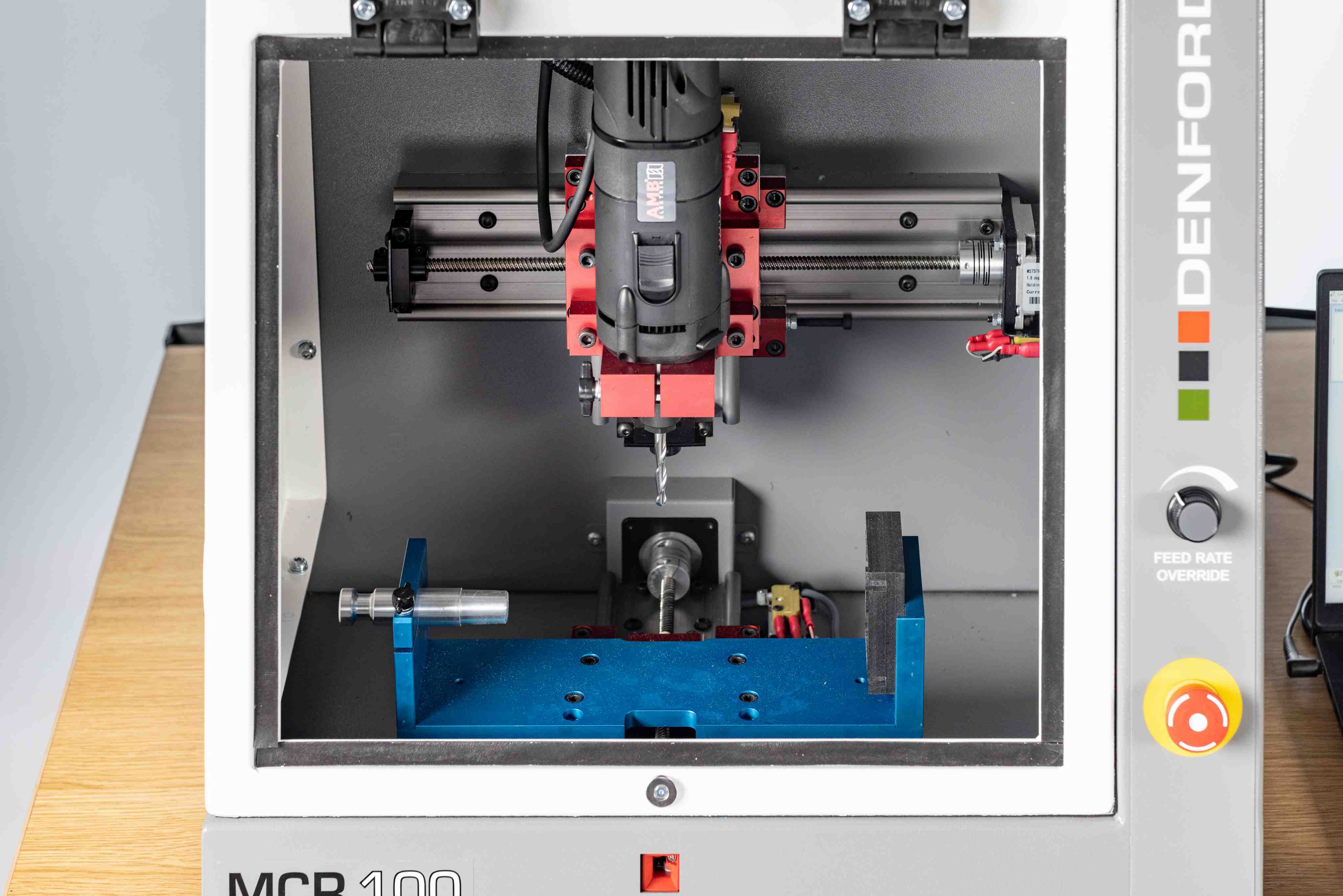

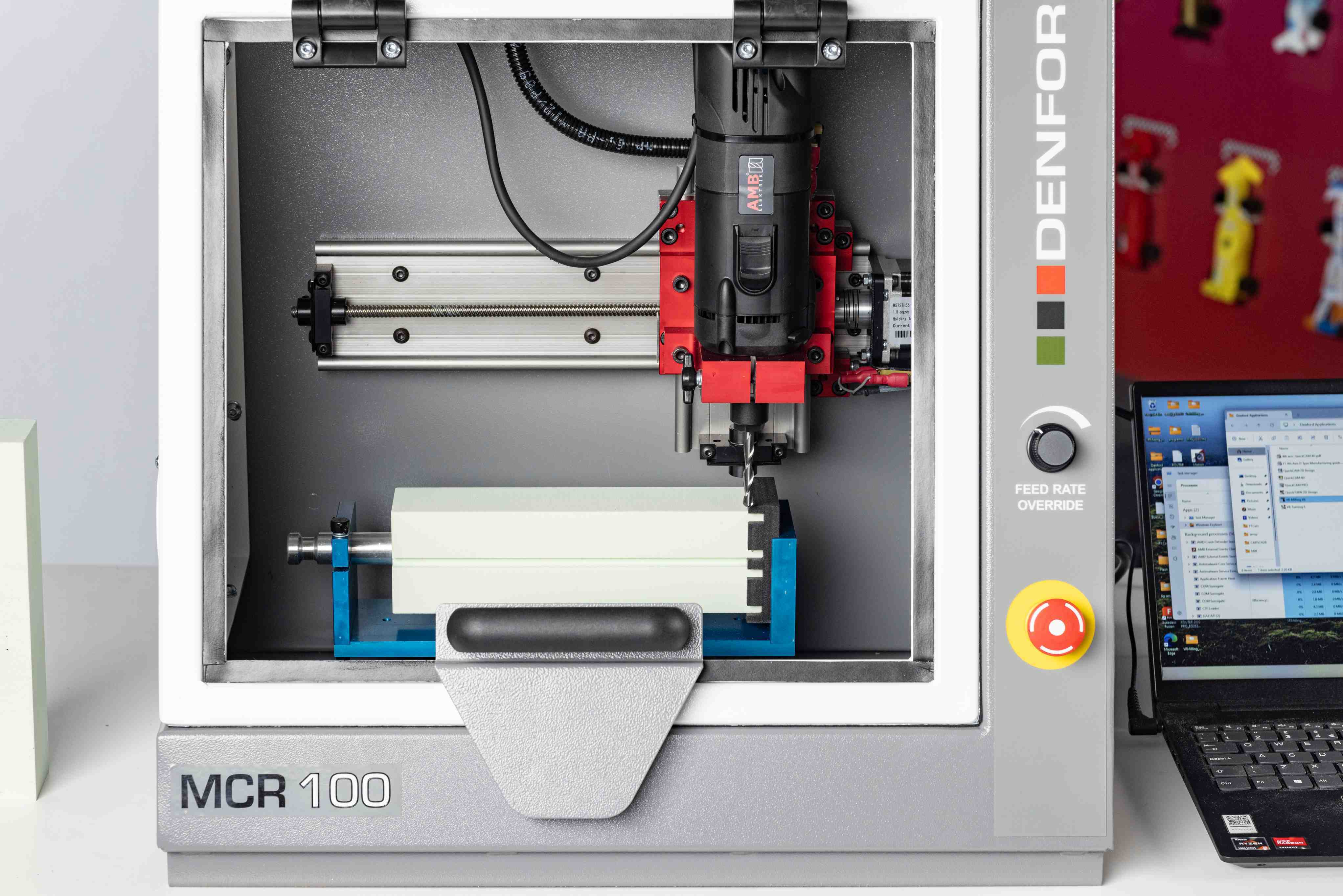

A compact, desktop 3 Axis CNC Router with totally enclosed interlocking guard, the Denford MCR 100 has been designed exclusively for the manufacture of STEM Racing cars, giving a high quality, professional finish.
FEATURES
From digital design to finished STEM Racing car
The MCR 100 is the perfect machine for schools looking to embrace the STEM Racing initiative.
- Entry level CNC for STEM Racing car manufacture
- Dedicated STEM Racing fixture
- Start manufacturing straight away, with correct offsets included
- Desktop design
- Supplied with VR Milling 6 control software and QuickCAM Pro with car design wizard
WORKFLOW
From STEM Racing car design to manufacture
The MCR 100 helps students experience the complete digital design and manufacturing process:
- Create and develop the STEM Racing car design.
- Use the QuickCAM Pro Car Wizard to prepare the CNC machining process.
- Secure the model block using the dedicated workholding fixture.
- Use the preset offsets to simplify machine setup.
- Machine the car body accurately and consistently.
- Finish, test and refine the car before racing.
LEARNING OUTCOMES
Practical STEM and Engineering Skills
By designing and manufacturing their own cars, students can develop practical experience across:
- CAD/CAM and CNC manufacturing
- Design for manufacture
- Toolpath creation and simulation
- CNC machine operation
- Workholding and machine setup
- Precision, accuracy and repeatability
- Engineering design and problem-solving
- Testing and iterative product development
- Teamwork and project management
WHCIH MACHINE?
MCR 100 or Compact 1000
Choose the MCR 100 if your primary requirement is manufacturing STEM Racing cars. Its dedicated fixture, preset offsets and Car Wizard software provide a focused and accessible solution for schools entering the competition.
Choose the Compact 1000 if you require a more versatile educational CNC router for product design, prototyping, wood, plastics, acrylics and other curriculum projects. The Compact 1000 Pro also provides non-ferrous metal machining.
The MCR 100 is not designed for general-purpose CNC routing or metal machining.
MCR 100 CNC Router Specifications
Equipment as standard
- VR CNC Milling Operating Software (PC not included)
- QuickCAM Pro Software with STEM Racing Car Wizard
- Workholding for STEM Racing Model Block
- Long Series Cutting Tool
- Outlet for Dust Extraction System
- Installation and Instruction Manuals
- Ethernet or USB Connection
- *PC Not Included
Optional extras
- Dust Pro 50 Extraction Unit
- 1/4" Dia Ball Nose Extra Long Series Cutter (Solid Carbide)
- STEM Racing Model Blocks
Important note
The MCR 100 is specifically designed and built for manufacturing STEM Racing cars. If your establishment requires CNC machining for other types of projects, we recommend considering the Compact 1000 instead.
Mechanical details
| Machine Length | 550mm (21.65in) |
| Machine Depth | 490mm (19.29in) |
| Machine Height | 525mm (20.67in) |
| Machine Weight | 45kg (99.21lb) |
| Travel Axis X | 218mm (8.58in) |
| Travel Axis Y | 75mm (2.95in) |
| Travel Axis Z | 55mm (2.17in) |
| Max. Spindle Speed | 29000rpm |
| Max. Feed Rate | 5000mm/min (196.85in/min) |
| Max. 3D Profiling | 4500mm/min (177.17in/min) |
| Spindle Motor 110V Supply | 800W (1.07HP) |
| Spindle Motor 230V Supply | 530W (0.71HP) |
| Axes Motors | Stepper |
| Power Requirements | Single Phase, 230V (8A) /110V (10A) |
| Frequency | 50/60 Hz |
Downloads
Product Spec Sheet
MCR 100
Download
232 KB | pdf
QuickCAM Pro and VR CNC Milling software for MCR 100 Router
The MCR 100 includes the software required to control the machine and manufacture STEM Racing cars.
QuickCAM Pro is supplied with the STEM Racing Car Wizard, which guides users through preparing the machining process and generating the required cutter paths. VR CNC Milling 6 controls the machine and allows users to manage, simulate and run their CNC programmes.
Together, these tools simplify the transition from digital car design to physical manufacture, making the process more accessible to teachers and students who are new to CNC machining.
QuickCAM PRO
QuickCAM Pro is an advanced, yet simple to use, wizard based CAM package, which is used to create cutter paths for machining 3D parts on a milling machine or router.
More Info
VR CNC Milling 6
Virtual Reality (VR) CNC Milling 6 is an improved and updated version of our CNC machine control software for our range of milling machines and routers.
More Info
