Router 6600 / Pro: Large Format CNC Router
Large format router for Education
Price on application
This product is built to order and the quote can be customised to your specification.
Wide material capability
High-speed CNC routing
Large Format CNC routing for education and training
The Denford Router 6600 and 6600 Pro are large-format, floor-standing CNC routers designed for education, engineering training and advanced manufacturing projects. Denford’s largest CNC router provides a generous 1000 x 600 mm working area, enabling users to machine large components or operate multiple fixtures efficiently.
Suitable for wood, plastics, acrylics, modelling foam and prototyping materials, the Router 6600 delivers fast, accurate and repeatable machining. The Router 6600 Pro adds the capability to machine non-ferrous metals, alongside enhanced spindle speed control.
FEATURES
High-capacity CNC Routing with a 1000x600mm working area

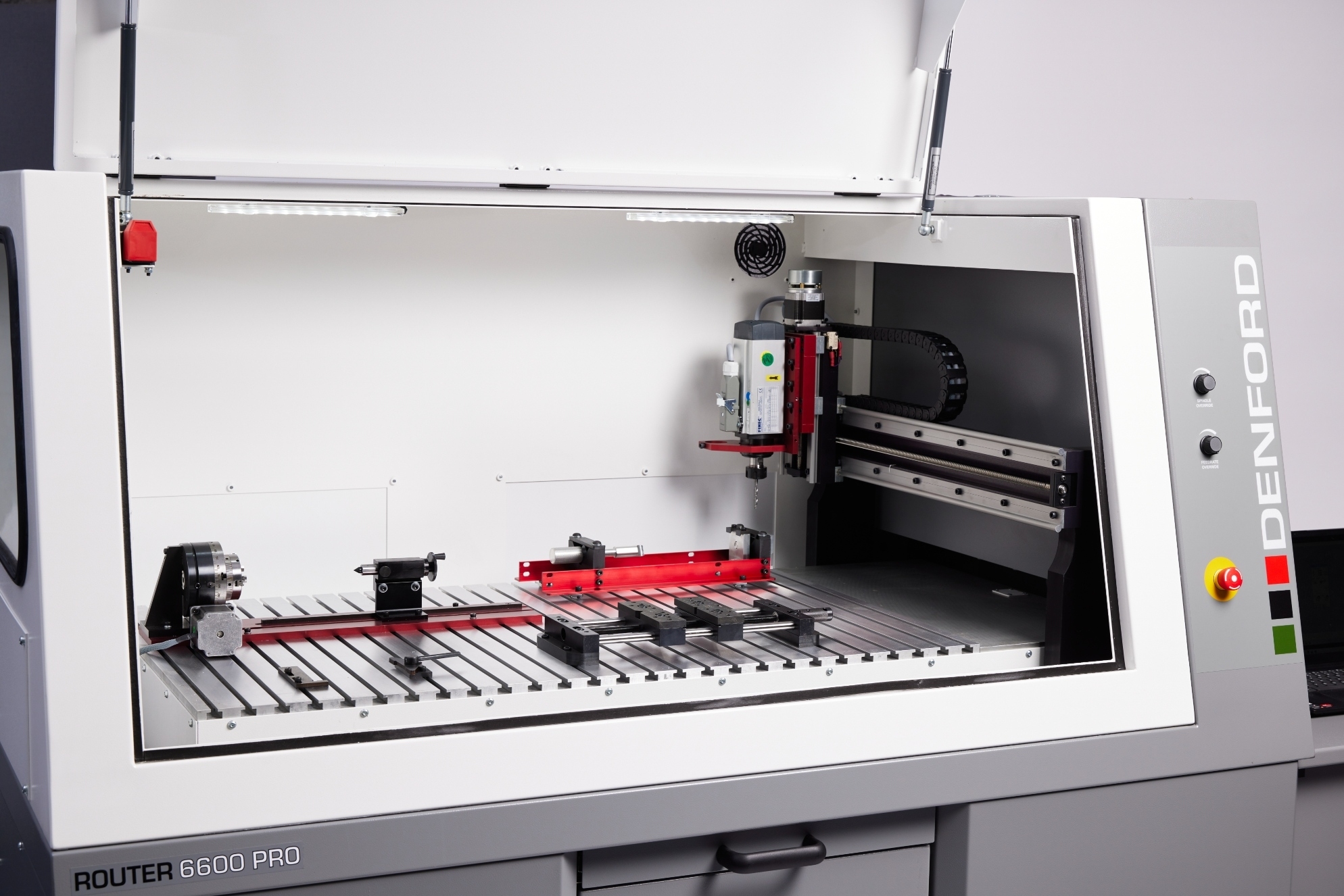

The Router 6600 / 6600 Pro offers large machining capacity at high speed. Its significantly larger work area allows multiple fixtures to be bolted to the T-slot table simultaneously, making it ideal for handling varied or consecutive projects with efficiency.
FEATURES
CNC Routing for wood, plastics and non-ferrous metals
Denford's largest Router, the 6600 / 6600 Pro, easily cuts through a range of resistant materials, including non-ferrous metals.
- Hard and soft woods
- Acrylics and other plastics
- Modelling foam and prototyping materials
Non-ferrous metals (Pro only)
*Shown with optional machine bench and support extension
APPLICATIONS
How you can use the Router 6600 / Pro
Designed for schools, colleges, universities, technical training centres and advanced workshops, the Router 6600 range can support a wide variety of practical projects, including:
- Engineering and product-design prototypes
- Architectural models and large-format components
- Furniture, cabinetry and joinery projects
- Patterns, moulds, fixtures and tooling
- Repeatable batch production
- STEM Racing car manufacture with the appropriate fixture or fourth-axis kit
Note: The Router 6600 is suitable for machining wood, plastics, acrylics, foam and other prototyping materials. The Router 6600 Pro adds non-ferrous metal machining capability, together with spindle speed control and spindle speed override.
Router 6600 and 6600 Pro Specifications
Equipment as standard
- VR CNC Milling Operating Software (PC not included).
- QuickCAM 2D Design software (1 seat).
- Machine Bench.
- Aluminium T Slot Table.
- Outlet for Dust Extraction System.
- Workholding Clamps.
- Installation and Instruction Manuals.
- Ethernet or USB Connection.
Optional extras
- Recommended Tooling Package
- Recommended Set of Quick Change Toolholders & Collet
- Self-Centring Vice
- 4th Axis Programmable Rotary Fixture (including QuickCAM 4D, site licence)
- STEM Racing 4th Axis Car Manufacturing Conversion Kit
- Large Format Vacuum Bed (1000 x 600mm or 600mm x 400mm)
- Vacuum Pads
- STEM Racing Car Manufacturing Fixture
- 3D Scanning Attachment
- Integrated Dust Pro 100 Extraction Unit for Machine Bench
- Computer Support Extension for Machine Bench
- Floating Head
Important note
For applications requiring tougher materials, such as steel, we recommend the VMC 1300 Pro for optimal performance.
Mechanical details
| Machine Length | 1825mm (71.85in) |
| Machine Depth | 985mm (38.78in) |
| Machine Height | 1540mm (60.63in) |
| Length with Optional PC Arm | 2410mm (94.88in) |
| Height with Door Open | 2110mm (83.07in) |
| Machine Weight | 430kg (948lb) |
| Table Size | 1080 x 640mm (42.52x25.20in) |
| Travel X Axis | 1000mm (39.37in) |
| Travel Y Axis | 600mm (23.62in) |
| Travel Z Axis | 110mm (4.33in) |
| Beam Clearance | 148mm (5.83in) |
| Max Spindle Speed | 29000 rpm / 24000 rpm |
| Non-ferrous Metal Cutting | Pro Only |
| Spindle Speed Control | Pro Only |
| Spindle Speed Override | Pro Only |
| Max. Feed Rate | 5000mm/min (196.85in/min) |
| Max 3D Profiling | 4500mm/min (177.17in/min) |
| Power Requirements | Single Phase |
| Spindle Motor 110V | 800W (1.07HP) / 1.0Kw (1.34HP) |
| Spindle Motor 230V | 1.0Kw (1.34HP) |
| Axes Motors | Stepper |
| Volts | 230 VAC |
| Frequency | 50 / 60 Hz |
| Electrical Connection | 13A Socket |
CAD/CAM Software for the Router 6600
Every Router 6600 and Router 6600 Pro includes the software required to control the machine and create 2D CNC projects.
VR CNC Milling supports industry-standard file formats, including DXF, DWG, EPS, Gerber and G&M code.
QuickCAM Pro can be added for producing toolpaths from STL files and other 3D designs.
QuickCAM 2D Design
QuickCAM 2D Design Software is an advanced, yet simple to use, wizard based 2D CAD/CAM package, which now includes V-Carve Extension as standard.
More Info
QuickCAM PRO
QuickCAM Pro is an advanced, yet simple to use, wizard based CAM package, which is used to create cutter paths for machining 3D parts on a milling machine or router.
More Info
